Swap an AI Dashcam using Reveal Hardware Installer
This article explains how to swap an AI Dashcam using the Reveal Hardware Installer app.
Note
This functionality may not be available in your location.
-

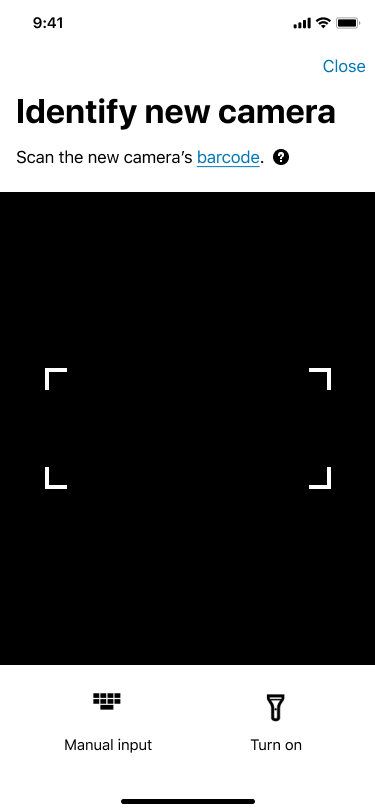

Scan the new camera barcode.
-

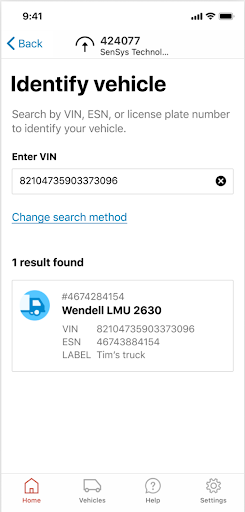

Select the vehicle the camera will be installed into.
-

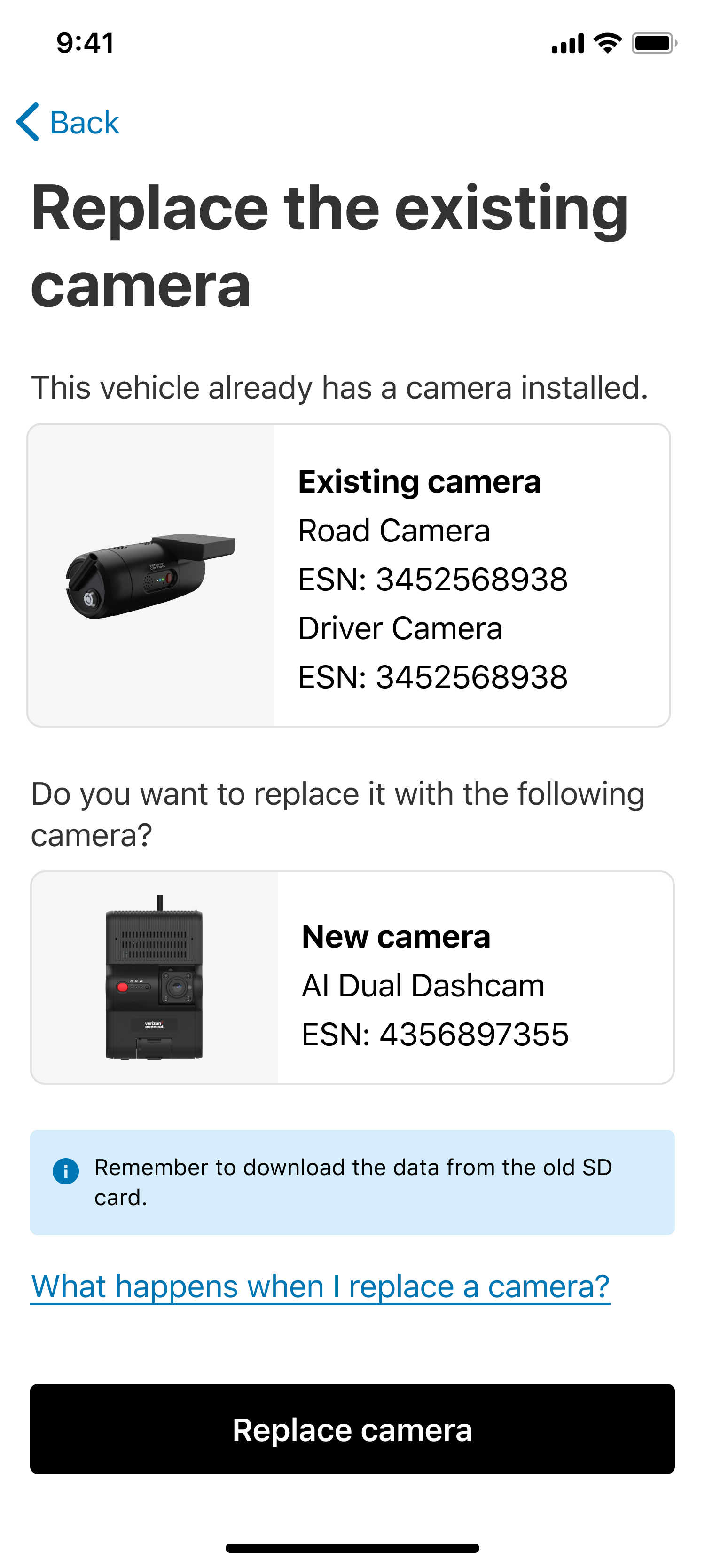

On the Replace the existing camera screen, choose Replace camera.
-

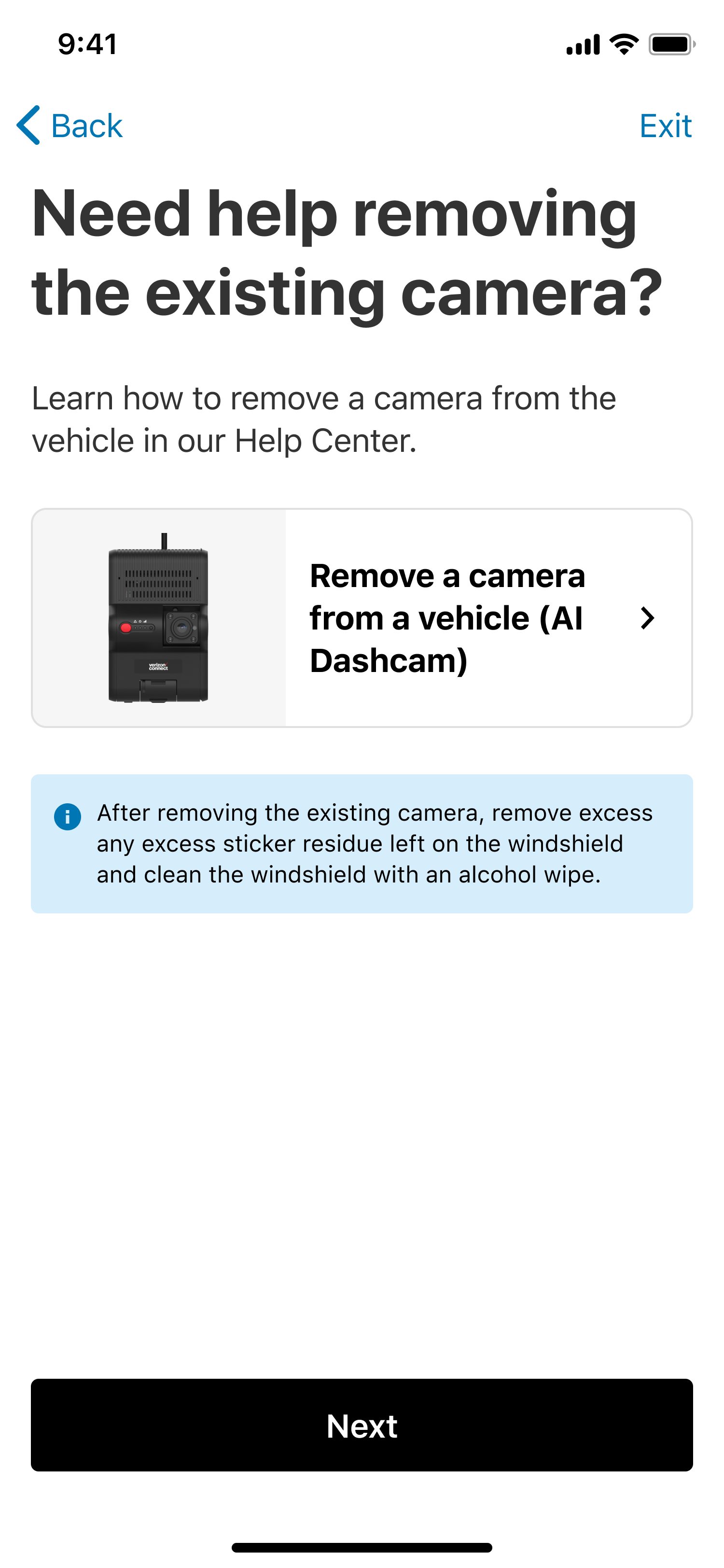

On the Need help removing the existing camera? page, you can access help articles with step-by-step instructions on how to remove a camera.
-
Choose Next.

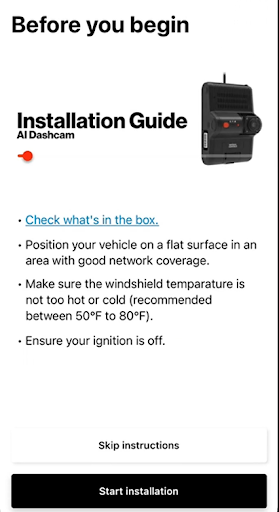

You’ll be brought to the Before you begin page.
-
When ready to proceed with the installation, select Start installation.
-

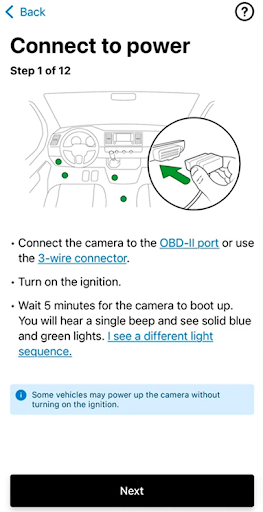

Connect to power, turn on ignition and wait 5 minutes for boot up.
-

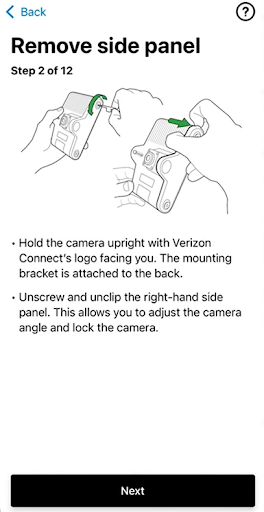

Remove the camera side panel.
-

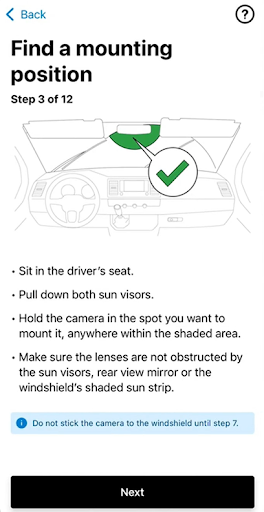

Choose the best placement for the camera before sticking it on the windshield, but do not attach it yet.
-

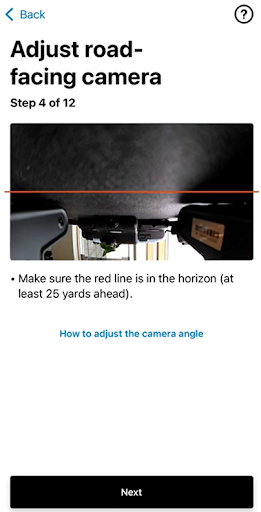

Adjust the road facing camera angle so it is evenly centred on the horizon.
-

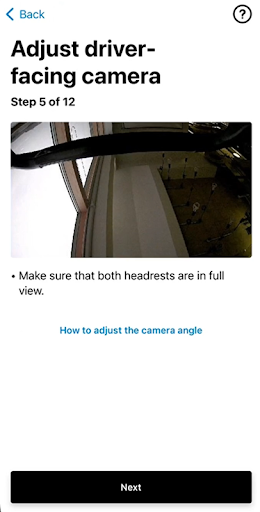

If the unit has a driver-facing camera, complete the same steps of aligning the camera so both headrests are in full view.
-

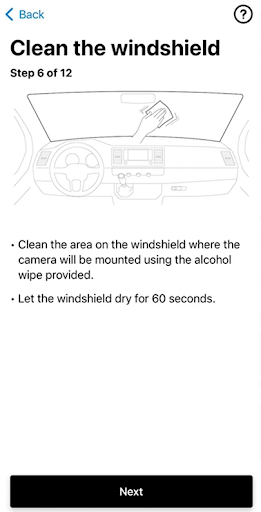

Clean the windshield using the alcohol wipes provided. Ensure that it is thoroughly dried.
-

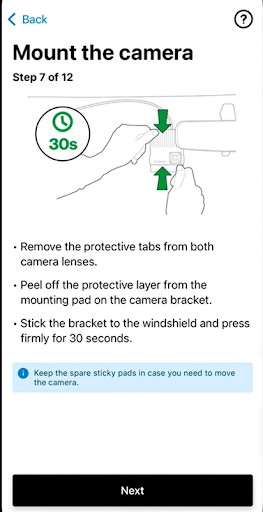

Mount the camera and bracket, and hold firmly for 30 seconds.
-
Remove the road-facing camera from the bracket.
-

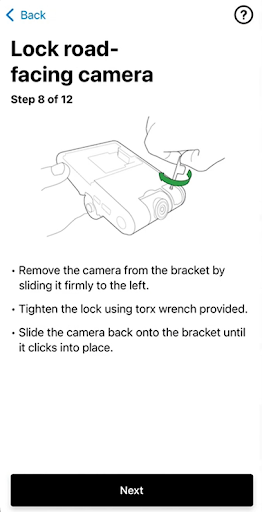

Lock the road-facing camera in position.
-

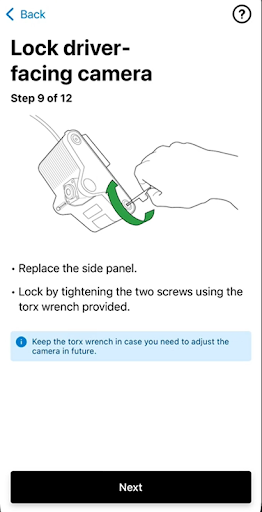

If the unit has a driver-facing camera, lock it into position.
-

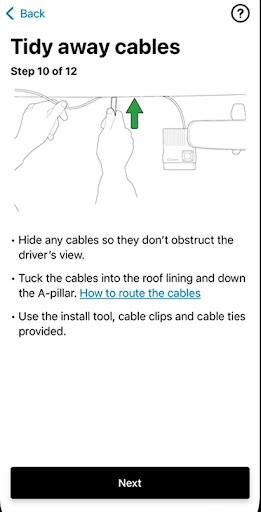

Tuck the cables into the roof lining and down the A-pillar using the tools and supplies provided.
-

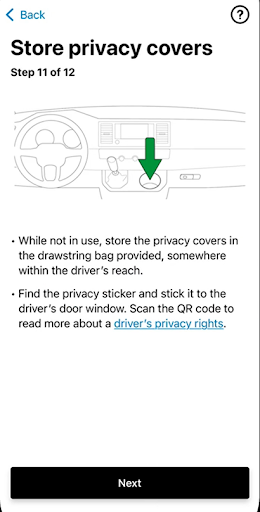

Place the privacy covers in the drawstring bag provided.
Note
Make sure that it's easily accessible/visible to driver - like a cup holder or driver side door panel.
-

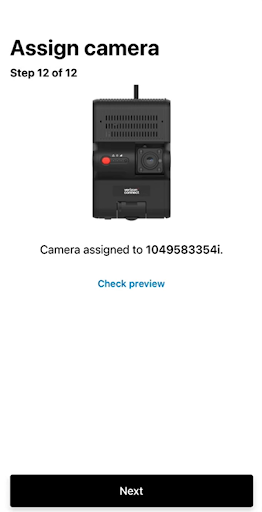

A temporary loading screen will show while the camera pairing takes place, then a confirmation once completed.
-

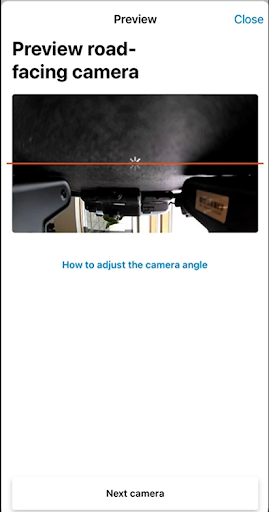

To view alignment, select Check preview.
-

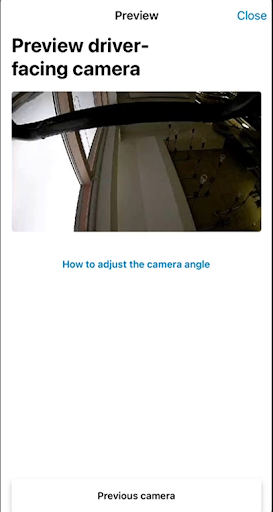

If a driver-facing camera is installed, select Next camera to view its alignment.
-
Select Close on the top right when completed.
-

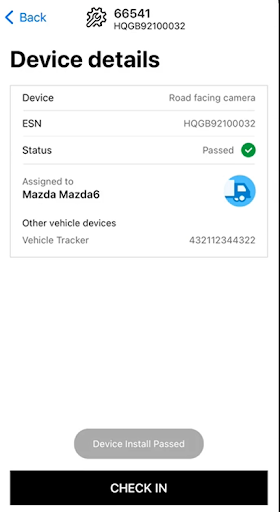

Review installation details, and select Check in to complete.
