Use Spotlight to install and set up an XT Vehicle Tracker (Xirgo)

This is a printed page that might be out of date. To read the most up-to-date help content, visit https://device-help.verizonconnect.com.

Skill level: Intermediate

Installers must be able to remove dash panels and instrument clusters, and mount and secure devices safely.

Time required: 30-60 minutes

This guide explains how to use the Verizon Connect Spotlight app to install and set up a XT Vehicle Tracker and an optional Driver ID accessory.

Warning

The engine must be OFF when you are installing the device.

Step 1: Download and log into the Spotlight app

  1. Download the Spotlight by Verizon Connect app onto your mobile device.

    Badge_Download_on_the_App_Store.svg Badge_GetItOnGooglePlay_Web_color.png

  2. Log into the app with your Verizon Connect login details.

    If you do not have login details, contact your administrator.

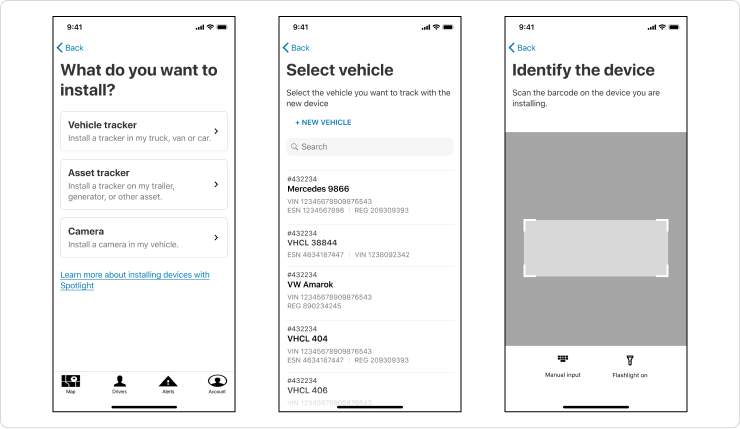

Step 2: Assign the vehicle tracker to the device


  1. In the Spotlight app, go to Account > Device setup.

  2. On the What do you want to install? screen, tap Vehicle tracker.

  3. On the Select vehicle screen, tap NEW VEHICLE.

  4. On the Identify the device screen, use your mobile device to scan the barcode on the vehicle tracker.

    If it's not possible to scan the barcode, tap Manual input, and enter the vehicle tracker’s serial number.

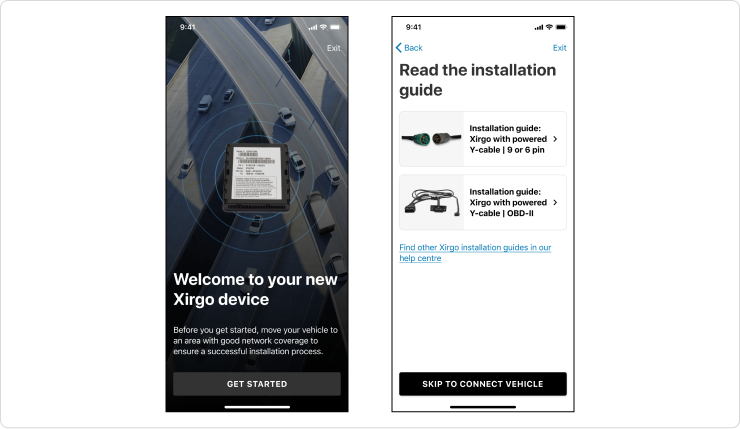

Step 3: Connect the tracker to the vehicle


  1. On the Welcome screen, tap GET STARTED.

    The Read the installation guide screen displays.

  2. Tap and access the installation guide for the type of installation.

  3. Install the Xirgo device in the vehicle as outlined in the relevant installation guide.

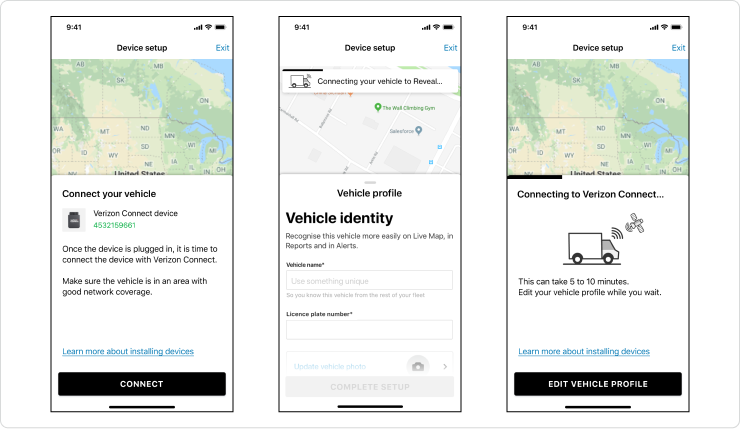

Step 4: Enter the vehicle information and connect to Reveal


  1. Once you have installed the device in the vehicle, choose SKIP TO CONNECT VEHICLE.

  2. When the device is recognised, tap CONNECT.

  3. While waiting for the device to connect, you can enter the vehicle information. To do this, tap EDIT VEHICLE PROFILE.

  4. On the Vehicle identity screen, enter the vehicle information and choose Save.

    Note

    Complete and accurate vehicle information allows Verizon Connect to provide better information about your vehicle.

    Enter the following information:

    • Vehicle name (mandatory)

    • License plate number (mandatory)

    • VIN

    • Year, Make, Model

    • Fuel type

    • Tank capacity

    • Fuel efficiency (city)

    • Fuel efficiency (highway)

    • Current odometer reading

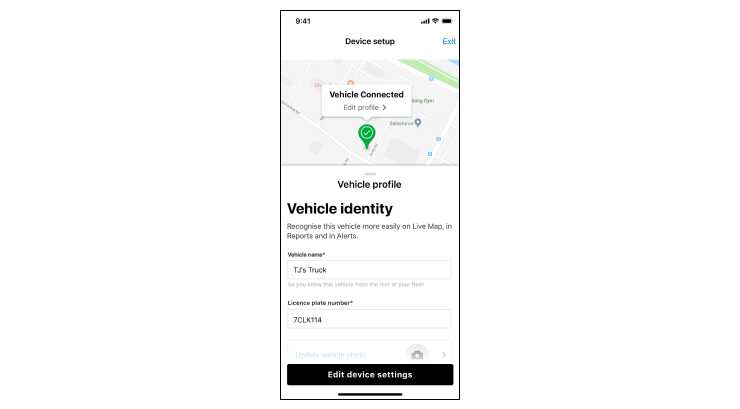

  5. When the vehicle is successfully connected, the vehicle appears on the map with a pop-up that says Vehicle Connected.

    If the connection fails, refer to Why is my vehicle not reporting?


  6. Tap Edit device settings.

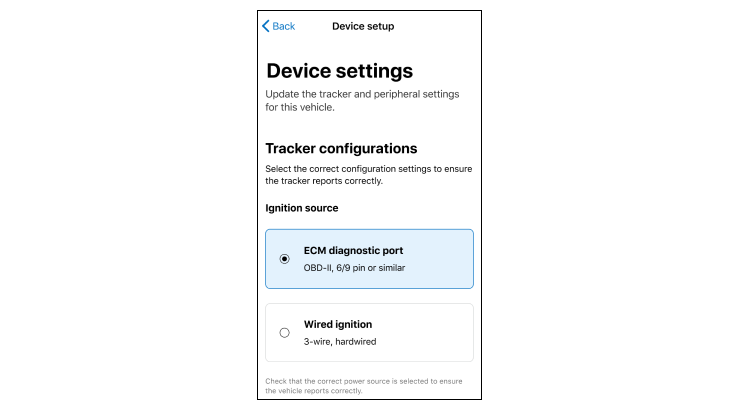

Step 5: Update the ignition source configuration

  1. On the Device settings screen, in the Tracker configurations section, select the ignition source.


    • If the device is connected by a cable to the diagnostic port (OBD-II or 6/9-pin or similar), select ECM diagnostic port.

    • If the device is connected using a 3-wire connection, select Wired ignition.

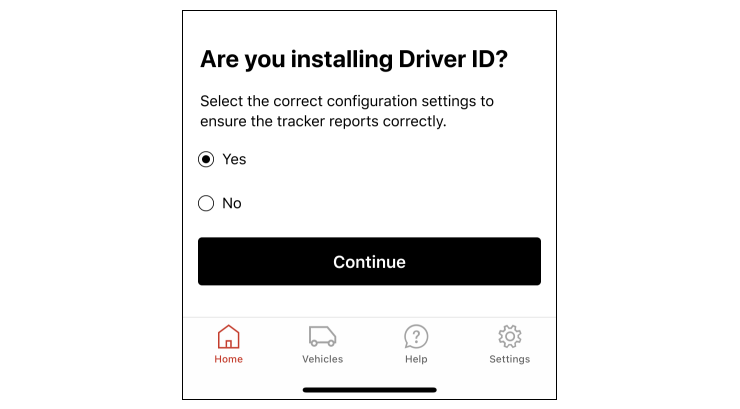

  2. In the Are you installing Driver ID? section, select Yes or No as appropriate.


  3. Tap Continue.

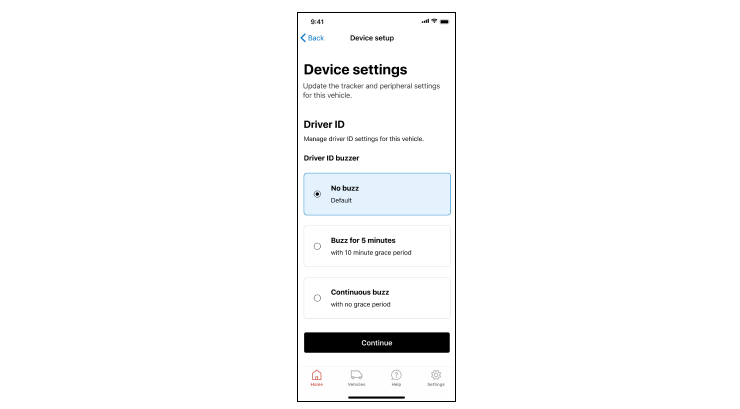

Step 6: Update Driver ID settings

  1. In the Driver ID section, choose how the Driver ID buzzer will operate when the vehicle is started but the driver has not used the fob to assign themselves to the vehicle.


    There are 3 options:

    • No buzz. (The default setting.)

    • Buzz for 5 minutes with a 10 minute grace period.

    • Continuous buzz with no grace period.

  2. Tap Continue.

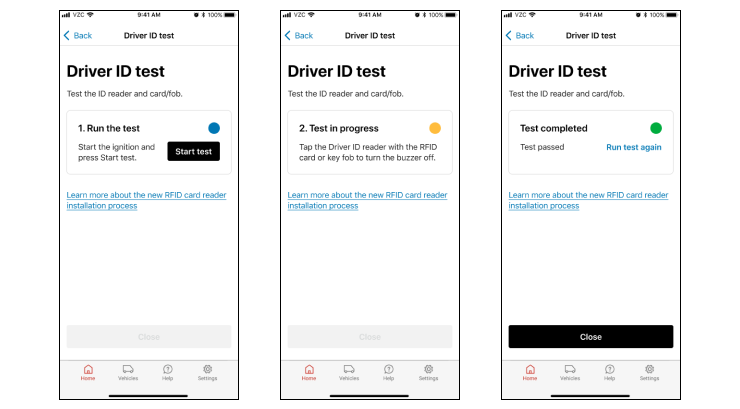

Step 7: Test the Driver ID installation


  1. Turn on the vehicle ignition and select Start Test.

  2. Tap the Driver ID reader with the key fob.

    If successful, the buzzer switches off.

  3. To run the test again, select Run test again.

  4. To exit the test, select Close.

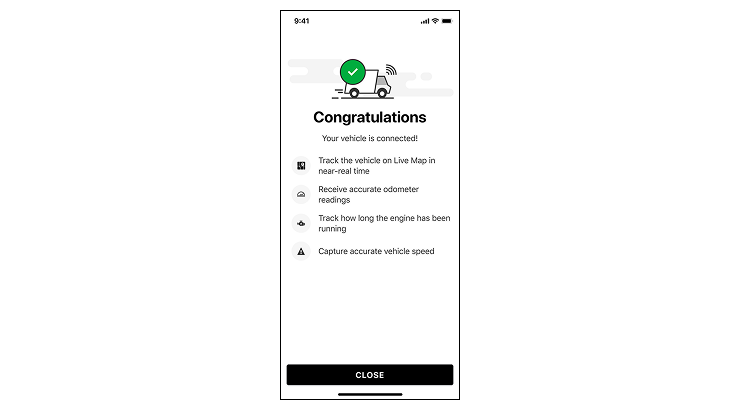

Step 8: Confirmation of installation


  • On the Congratulations screen, tap close.

Disclaimer

In accord with the terms and conditions of the Master Technology and Subscription Services Agreement between you and Verizon Connect, Verizon Connect shall not be responsible for any loss or damage whatsoever in connection with the self-installation of equipment, including without limitation, if equipment or services are not able to properly function, unless such damages have been caused by the negligent act or omission of Verizon Connect. Tracking hardware connected to the diagnostic port in vehicles that have third-party devices present can cause the third-party device or vehicle to lose functionality. These third-party devices include, but are not limited to, wheelchair lifts, idle control modules and PTOs. If such a conflict exists, contact Verizon Connect support to have the tracking hardware configured to support the third-party device. Failure to do so relieves Verizon Connect of all liability for damages that arise from or are connected with your use of the devices. Installed devices may only be removed and transferred to another vehicle if the second has been tested for compatibility, as per the(se) instructions. Transfers between vehicles which do not follow the(se) instructions will void any and all warranties from Verizon Connect, and relieve Verizon Connect of all liability for damages that arise from or are connected with your use of the devices.
