CalAmp 36xx I/O harness accessory connector descriptions and input wiring diagram

This is a printed page that might be out of date. To read the most up-to-date help content, visit https://device-help.verizonconnect.com.

!3640

Connecting accessories and sensor inputs

Note: 3-wire power and ground connections are not made when completing powered Y-cable installations. However, connecting the harness's white wire to an ignition source will provide power output for peripherals that require it.

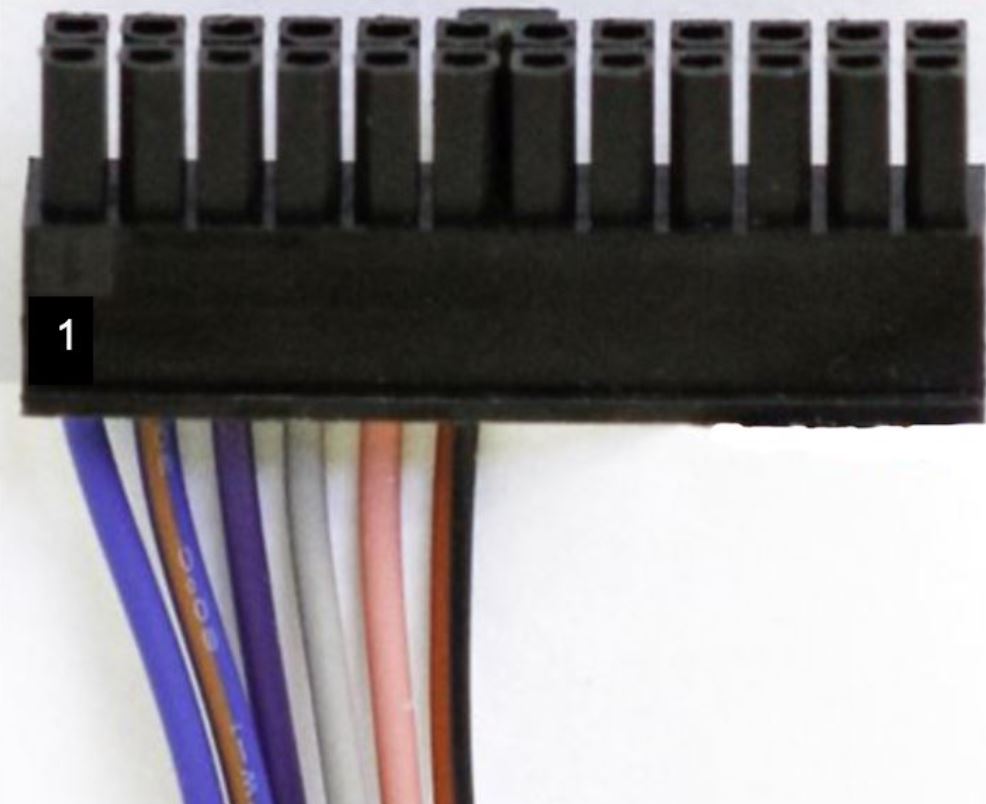

  1. Plug the 24-pin I/O accessory harness connector into the CalAmp device once you have made peripheral and sensor input connections.

Refer to the accessory installation links and sensor input wiring diagram information below to complete installations.

Driver ID (Reveal and Fleet)

Temperature probes (Fleet only)

Magnetic door sensor (Fleet only)

Panic/Privacy button (Fleet Only)

Sensor inputs

Sensor inputs require a minimum voltage transition of ±5 volts up to 30 volts maximum. The equipment's trigger wire should switch between -/open polarity, (+/-) polarity, (or -/+) polarity when the equipment is at rest in the off state and receives positive voltage when the equipment is in use.

  • A 5 pin SPDT relay may be required for sensor input installation
  • Sensor inputs do not require the 3 wire leads to be installed


Wiring Diagram

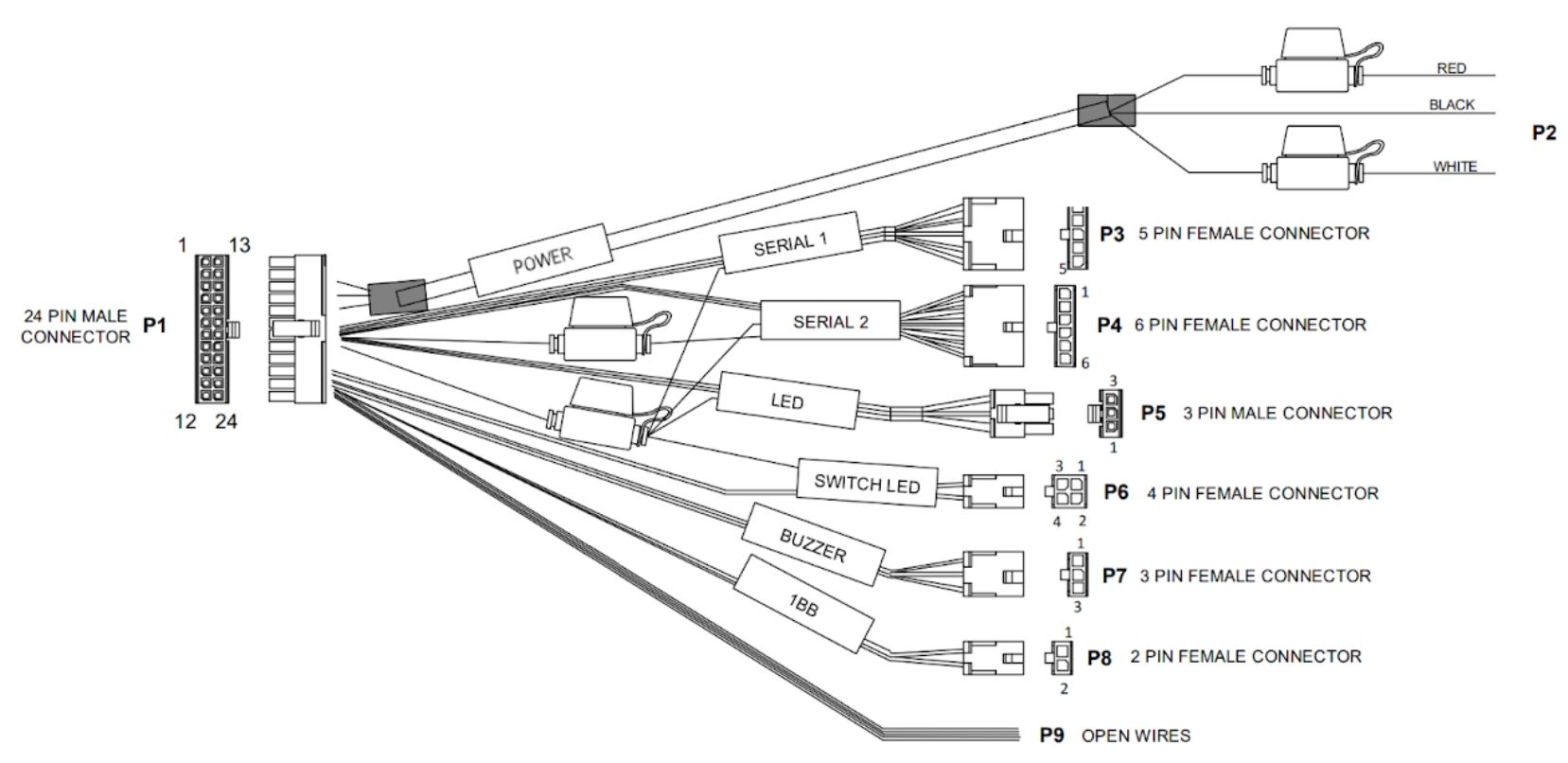

Identify the Molex connectors and wire leads using the list and corresponding diagram information below.

(P1) Pins 1-24
(P2) White Ignition wire 3 amp fuse (use only to provide ignition power to accessories requiring it.)
(P3) Serial 1 - 5 pin Garmin connector
(P4) Serial 2 - 6 pin
(P5) 3 pin LED connector (see Canadian ELD guide)
(P6) 4 pin Switch Panic/Privacy button connector
(P7) 3 pin Driver ID buzzer connector (use w/Canadian ELD dongle for indicator light)
(P8) 2 pin 1 BB connector for Driver ID reader connector or Temp Sensor
(P9)
Input 1/Pin 1 Blue wire Pos (+) trigger for Reveal and Neg (-) trigger for Fleet
(P9) Input 2/Pin 2 Blue/Orange wire (negative trigger)
(P9) Input 3/Pin 3 Violet wire (negative trigger)
(P9) Input 4/Pin 4 Gray wire (negative trigger)

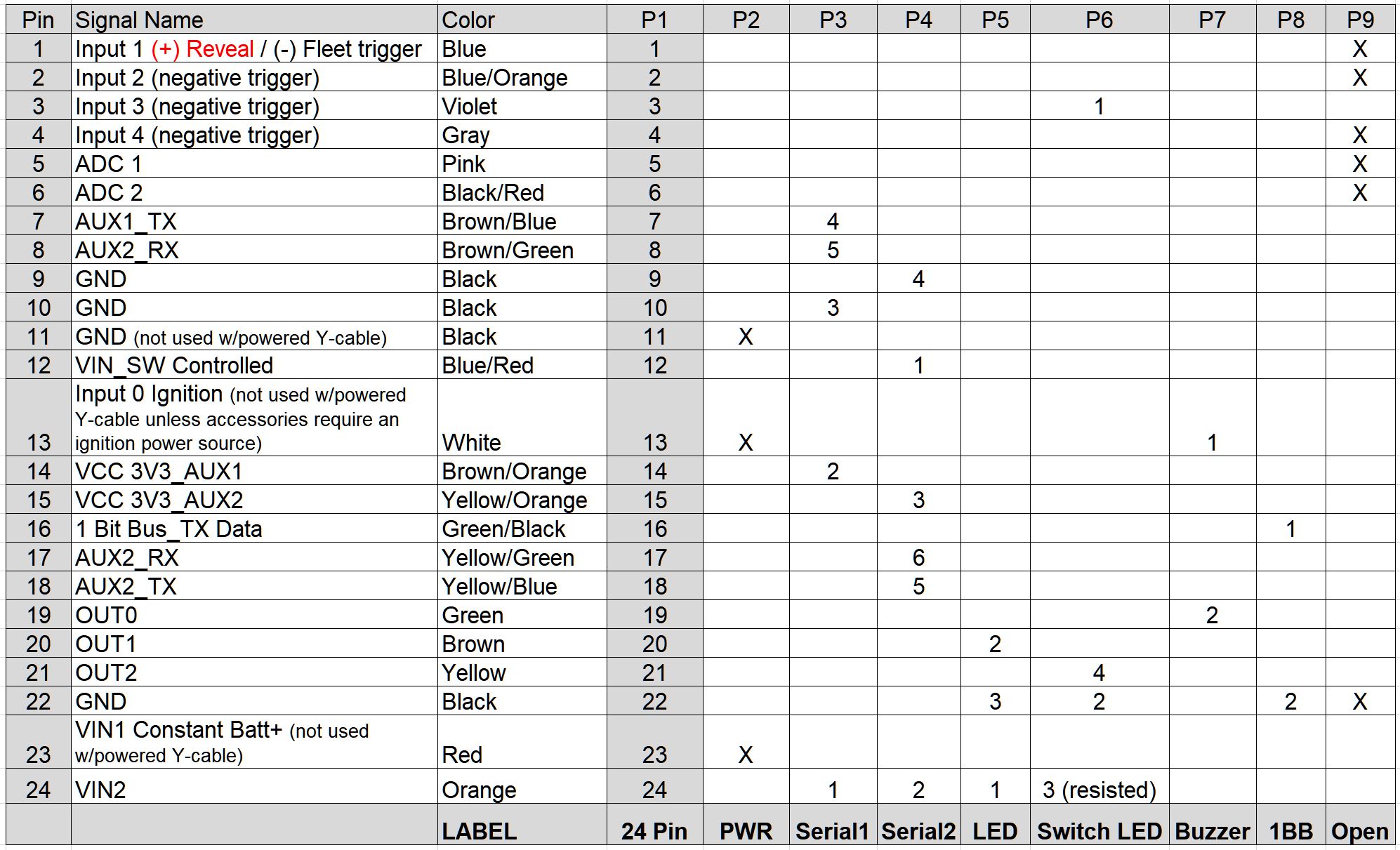

Pin 1 / Sensor Input 1 - Blue
     * Positive (+) trigger for Reveal
     * Negative (-) trigger for Fleet
Pin 2 / Sensor Input 2 - Blue/Orange (-) trigger | Boom when applicable
Pin 3 / Sensor Input 3 - Purple (-) trigger
Pin 4 / Sensor Input 4 - Gray (-) trigger
Pin 5 / Sensor Input 5 - Pink ADC1 (analog to digital) (-) trigger
Pin 6 / Sensor Input 6 - Black/Red striped ADC2 (-) trigger
Pin 7 / Aux 1 TX  - Brown/Blue
Pin 8 / Aux 1 RX - Brown/Green
Pin 9 / Ground - Black
Pin 10 / Ground - Black
Pin 11/ Ground - Black
Pin 12 / VIN SW controlled - Blue/Red
Pin 13 / Input 0 Ignition - White
Pin 14 / VCC 3V3 Aux 1 - Brown/Orange
Pin 15 / VCC 3V3 Aux 2 - Yellow/Orange
Pin 16 / 1-Bit Bus data - Green/Black
Pin 17 / Aux 2 RX - Yellow/Green
Pin 18 / Aux 2 TX - Yellow/Blue
Pin 19 / Out 0 - Green
Pin 20 / Out 1 - Brown
Pin 21 / Out 2 - Yellow
Pin 22 / Ground Black
Pin 23 / VIN 1 Constant Power - Red
Pin 24 / VIN 2 - Orange
