Extended View Cameras
-

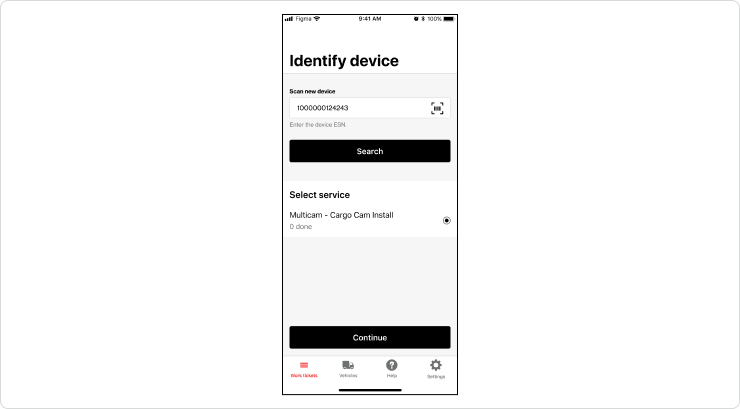

In the Revel Hardware Installer app, scan the device or enter the ESN.
-
Select Search.
-
Select the corresponding installation line item and then select Continue.
-
To identify the vehicle, enter or scan the VIN and select the vehicle you used for the install.
Note
To change the search method to VTU ESN, road-facing camera ESN or license plate number select change search method.
-

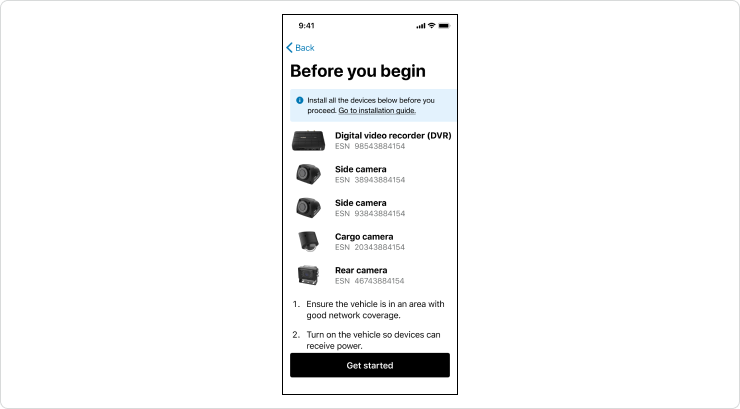

Before proceeding:
-
Ensure the vehicle is an area with good network coverage.
-
Turn on the vehicle so the devices receive power.
-
-
Select Get started.
-
The app will then check the DVR status.
Note
The device must be online before proceeding
-
Once the DVR is online, select Next.
-

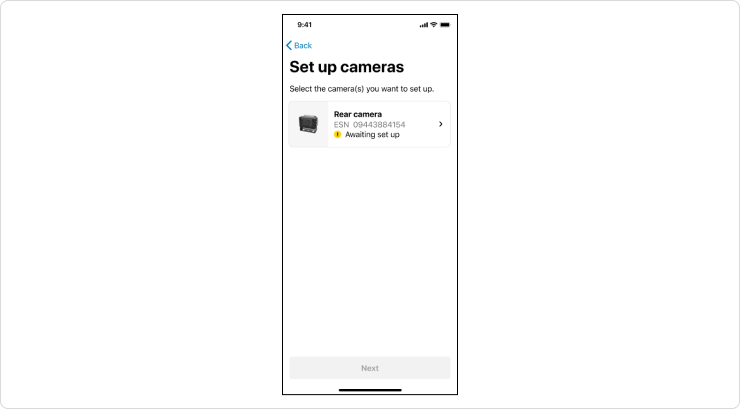

Select the camera you want to set up and click Next.
-
Select a channel with an available preview to associate with your chosen camera and click Next.
-
Make sure the camera is positioned correctly and adjust if necessary.
-
Select where the camera is positioned on the vehicle by choosing an option from the dropdown list and click Next.
Note
Selecting where a camera is installed makes it easier to identify which camera recorded a video.
-
Repeat steps 9-12 until all cameras in the kit are set up.
-
On the Set up cameras screen, select Next.
-
To assign the devices to the vehicle, select Next.
-

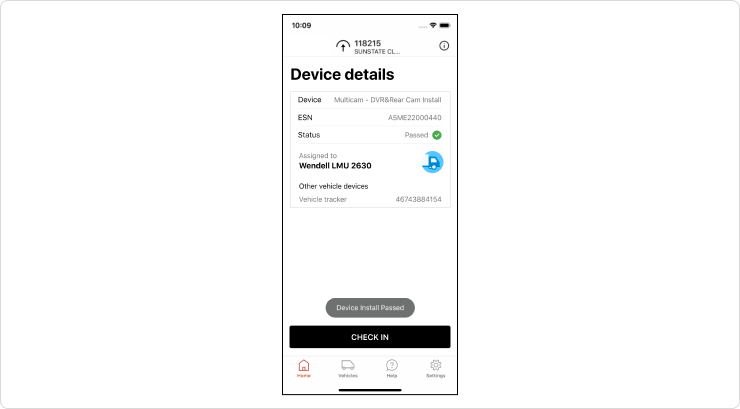

On the Device Details screen, select Check in to complete the installation.
