Using the in-cab monitor: Extended View Cameras
Note
This article is intended for drivers.
Previews of each Extended View Camera installed in a vehicle are displayed on the in-cab monitor screen. Up to 4 camera previews are displayed at one time. Road-facing and driver-facing camera previews are not shown on this monitor.
In this article:

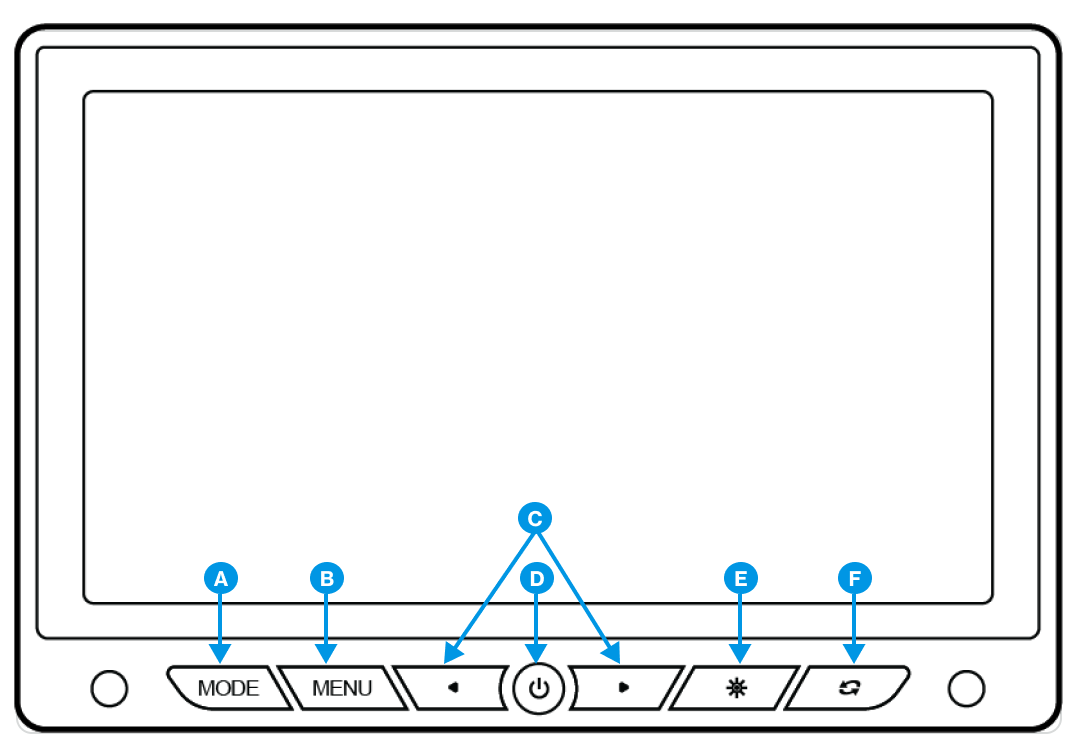

A) MODE
-
Aspect ratio: Adjust to allow for a narrow or wide display of the camera channels.
B) MENU: Tap MENU to open the first option. Use the arrows to navigate to the desired menu option.The arrows also increase or decrease the values associated with each menu option.
-
Brightness
-
Contrast
-
Color gradient
-
Language: Choose from English, Dutch, Spanish, French, Portuguese, Italian, Hebrew and Mandarin
-
Back delay: Adjust the time it takes to navigate between camera displays
-
Guideline
-
Aspect ratio: Adjust to allow for a narrow or wide display of the camera channels.
-
Reset: Reset the monitor to its factory settings.
C) Left and right arrows: Navigate through the camera channel displays and the values associated with each menu option.
D) Power button: Powers the monitor on and off.
E) Brightness display preferences:
-
Daytime display
-
Nighttime display
-
User: Custom display based on previously selected options.
F) Mirror: Flips all camera displays.
Each camera channel preview is labeled depending on the position selected during the installation. Labels include; Rear, Cargo, Driver-facing, Road-facing, Passenger side and Driver side.
If a camera channel is not displaying correctly, notify your fleet manager.
