Installation guide: VT-400 for heavy duty vehicles

This is a printed page that might be out of date. To read the most up-to-date help content, visit https://device-help.verizonconnect.com.

Skill level: Intermediate

Installers must be able to remove dash panels and instrument clusters, and mount and secure devices safely.


Estimated time for install: 30-45 minutes

This article outlines how to install the heavy-duty VT-400 vehicle tracker.

It covers:

Preparing for installation

Before you install the device, there are a few things that you need to do to ensure a smooth process.

Check the box contents

You should receive the following:

  • VT-400
  • CIO diagnostic cable (optional)
  • CIO (optional)
  • Digital input connector (optional)

Get your fleet ready

We recommend installing the device outdoors in an area with good network coverage.

Gather your vehicle information

To complete the setup you need to enter the following information for each vehicle:

  • Vehicle name - give your vehicle a name that makes it easily identifiable on Live Map and in reports.
  • Vehicle license plate
  • Year, make and model of vehicle
  • Current odometer reading

Gather your tools and supplies

Depending on your vehicle type, you might need some of the following tools:

  • Dash panel removal tools
  • Wire stripping tools
  • Digital voltmeter
  • Cordless drill
  • General purpose screwdriver bit set
  • Sockets (standard/metric)
  • Work light
  • Electrical tape - Super 33 grade or better
  • Extra zip ties
  • Extra self-tapping screws
  • Extra heat shrink ring terminals, butt connectors, and a mini-torch
  • Add-A-Circuit fuse adaptors

Installing the device

1. Identify the parts

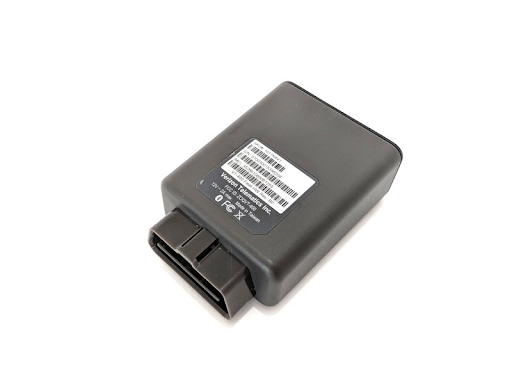

  • VT-400

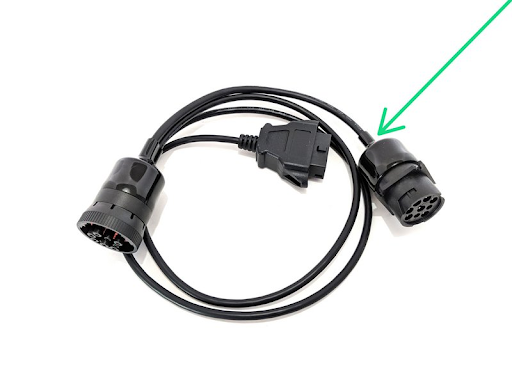

  • Heavy-duty diagnostic cable


  • CIO (optional)


  • Digital input connector (optional)

There are CIO and non-CIO specific cables for the VT-400. Please ensure you have the correct cable before installing.

2. Record the device serial number


Record the device serial number. You need this along with the vehicle details, to verify the installation.

The serial number is found on the bottom of the device.


We recommend that you record the CIO serial number as well.

3. Choose where to mount the device


The device must be mounted:

  • Label side up.
  • Concealed from the driver’s view.
  • High in the dash for the best signal.
  • With a clear line of sight out of the vehicle
  • Away from heavy metallic surroundings.

4. Install the diagnostic cable


  1. Install the provided diagnostic cable in line with the OEM diagnostic connector.
  2. Remove the OEM diagnostic connector.Heavy-Duty_diagnotisc_cable_in_line.png
  3. Install the provided diagnostic cable in line.
  4. Install the provided diagnostic cable into the OEM location.
  5. Neatly secure the connectors and cable.VT-400_Wired.png
  6. Run the remaining long end of the provided diagnostic cable to the location where the device is to be installed.
  7. Secure cable along the way, staying clear of any moving parts.
  8. Plug the provided diagnostic cable into the device
  9. Place the provided end cap over the end of the device.

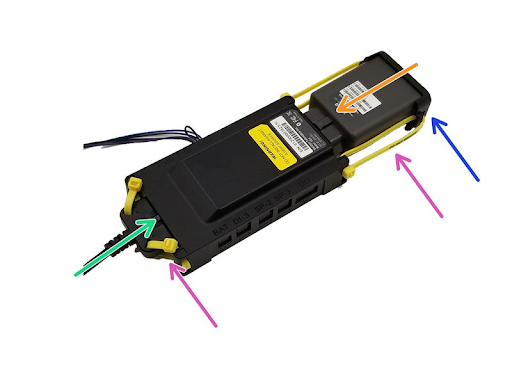

  10. Secure the device to the diagnostic cable by installing the provided yellow security ties.

Installing sensors


In order to use sensors, you must connect the CIO to the device, then connect the diagnostic cable to the CIO. You can then use the digital input connector to enable sensors:

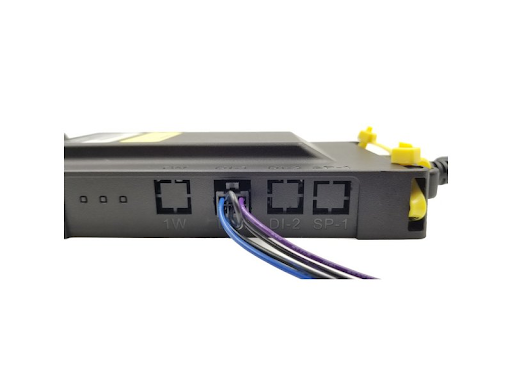

  • Remove the knockout panel and connect the digital input (DI) Molex connector to the CIO. Always start with the first available DI connector location.


  • Input position number is left to right.

DI-1 = Input 1 (blue) and Input 2 (purple)

DI-2 = Input 3 (blue) and Input 4 (purple)


It is important to test the voltage signal to ensure it continuously provides the necessary voltage and current in the “on” or “active” position.

  • The signal to be monitored must be capable of supplying 3mA when on and have two voltage states: One with no voltage and another that falls in the range of +5 to +24 volts or -5 to -24 volts.
  • The following describes how input signals are interpreted.

Wire A - Black or Black striped

Wire B - Solid Blue or Purple

Wire A supplies ground or reference voltage for Wire B which connects to the positive or negative trigger wire of the accessory being monitored.

Coil and tape up any unused sensor wire pairs and use zip ties to secure them safely away from interfering with moving parts and normal operation of the vehicle.

Mounting the device


  1. Place the provided end cap over the end of the device.
  2. Due to the internal accelerometer, the device must be secured with zip ties, VHB tape or Velcro. Don’t tape over the ESN on the label (the label will peel and be unreadable when the tape is removed).
  3. Secure the device firmly so it cannot move around.
    If the device is not secure, it will impact the accuracy of harsh driving events.
  4. Tidy up the cable and secure it with zip ties.
  5. Check everything is fastened tightly and cut off excess length of zip ties if needed.

Verifying operation

If you’re a Reveal customer, verify your installation in Reveal.

If you’re a professional installer using Reveal, use the Reveal Hardware Installer app.

If you’re installing a device in Fleet, use the Fleet Installer Portal.

Contacting Support
