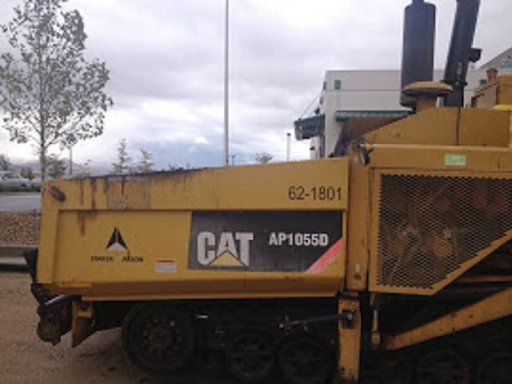

Installation example: CAT Paver on Reveal

This is a printed page that might be out of date. To read the most up-to-date help content, visit https://device-help.verizonconnect.com.

Skill level: Intermediate

Installers must be able to remove dash panels and instrument clusters, and mount and secure devices safely.

Step 1

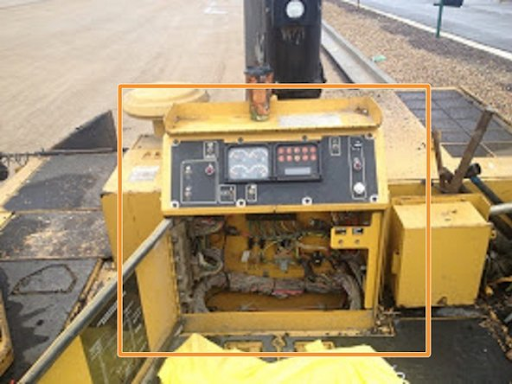

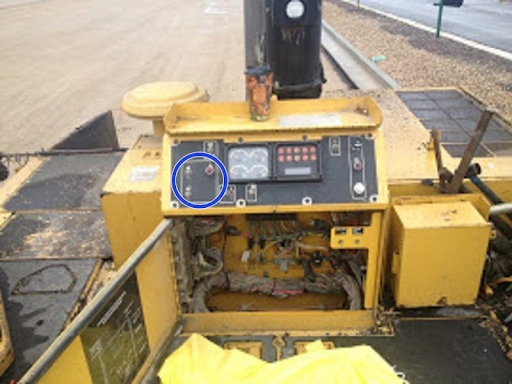

Locate the console

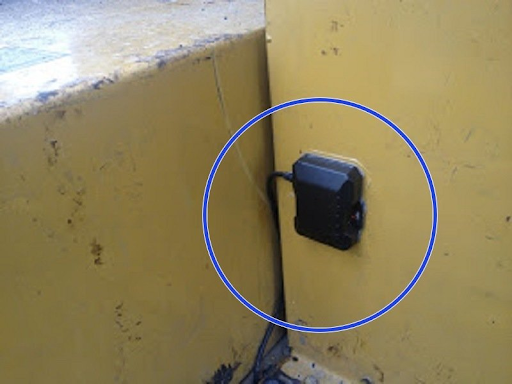

Find a suitable location for device

Note

The side of the console is a good location, as it’s not a working surface and has good visibility.

Make that the sure surface is clean
Silicone seam around the top and sides of device where it meets the surface

Note

Use a commercial grade adhesion promoter and commercial grade adhesive tape .

Step 2

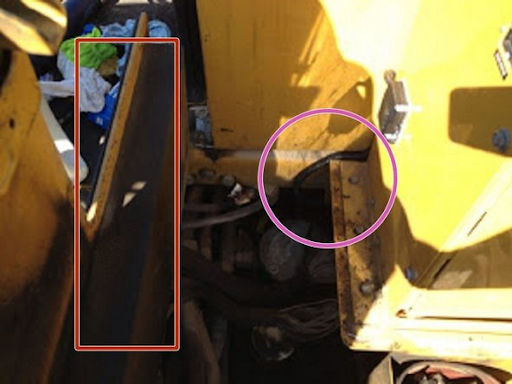

Lift the floor/door on the left of console
Protect and run the cable through the gap in the floor seem

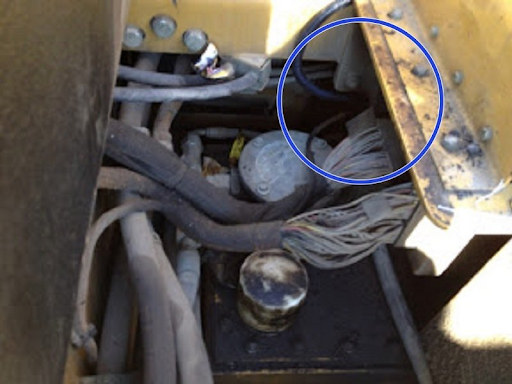

Run the cable through the hole in the lower left of the console

Note

Secure along the way as needed with adhesive tie down squares.

Step 3

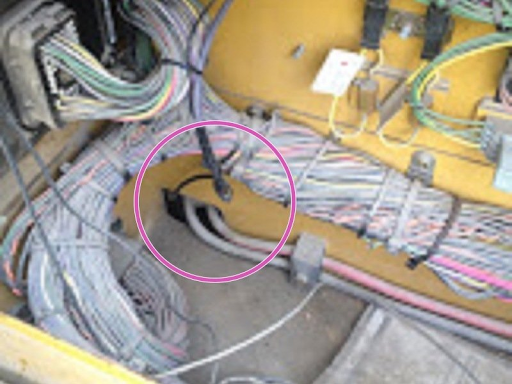

Access the hole in the lower left of the console

Step 4

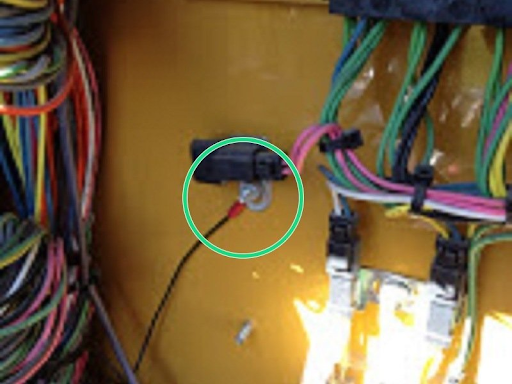

Ground the device to the factory bolt

Test and terminate the battery to the main feed as shown

Secure the fuse holders and wire

Step 5

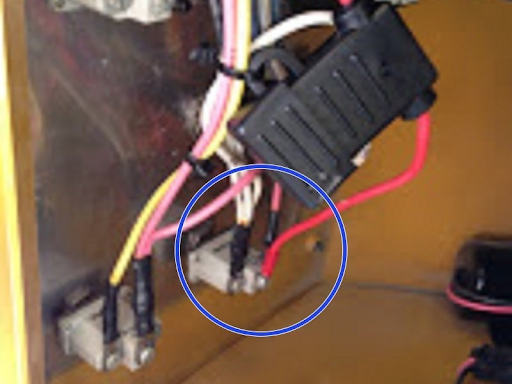

Test and terminate the ignition to the circuit on the left side of the console as shown

Verifying operation

Verify that the device is reporting correctly by searching for the vehicle name or the device’s serial number in Reveal.

Learn how to Verify an installation in Reveal.

Contact support.

Installation Partners

Verizon Connect Installation Partners should use the Reveal Hardware Installer (RHI) app to verify the installation. If you experience any issues with the RHI app, contact the Installer Support team .
