Find the road-facing camera (model 2)'s video connector
This is a printed page that might be out of date. To read the most up-to-date help content, visit https://device-help.verizonconnect.com.
To install the driver-facing camera (model 2), you need to find and connect to the road-facing camera’s video connector cable. This is sometimes hidden inside the headliner or behind the A-pillar.
Find the connector

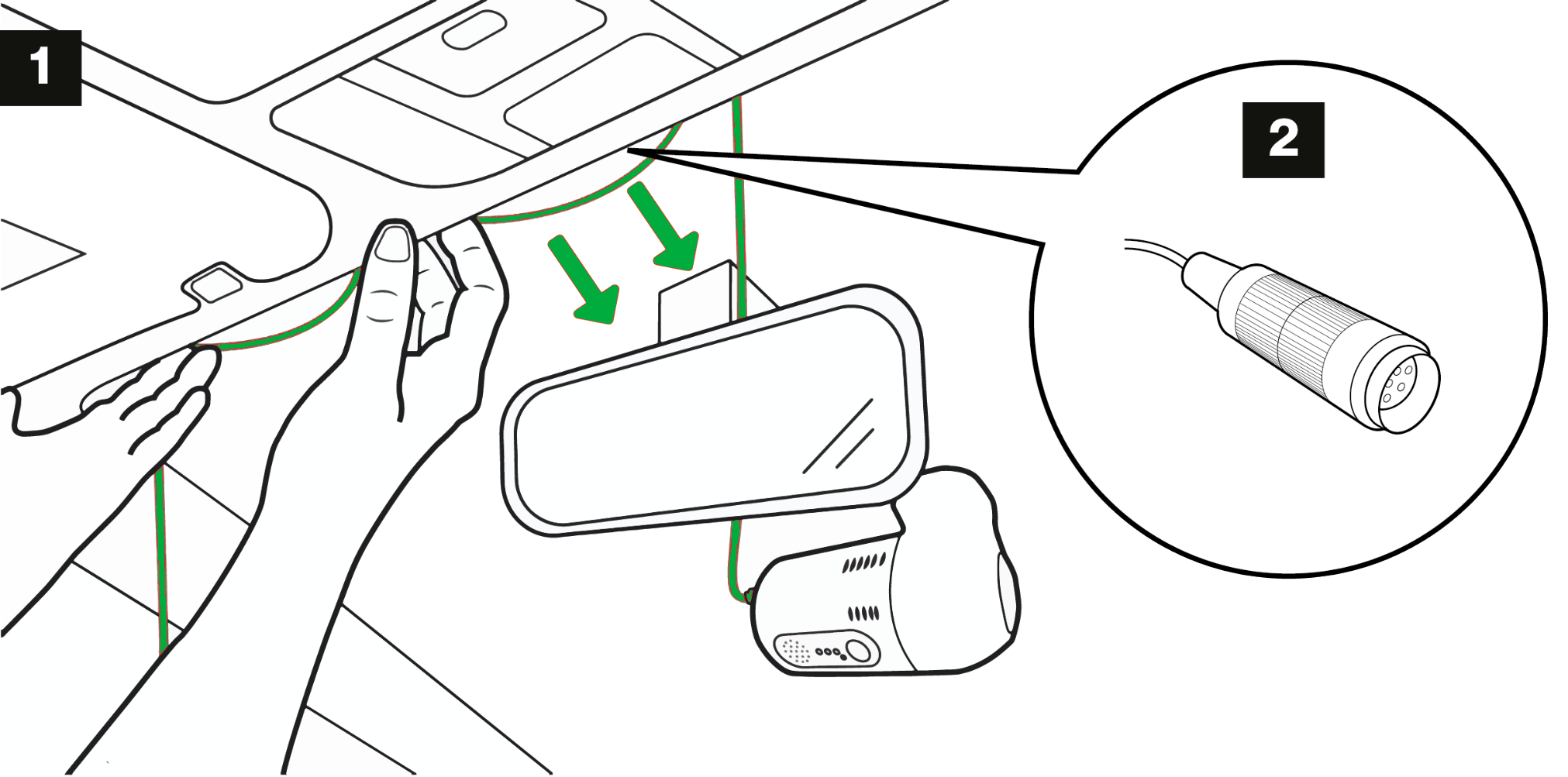

- Locate the cable coming from the road-facing camera and follow it to the headliner.
- Slowly pull on the cable to remove it from the headliner.

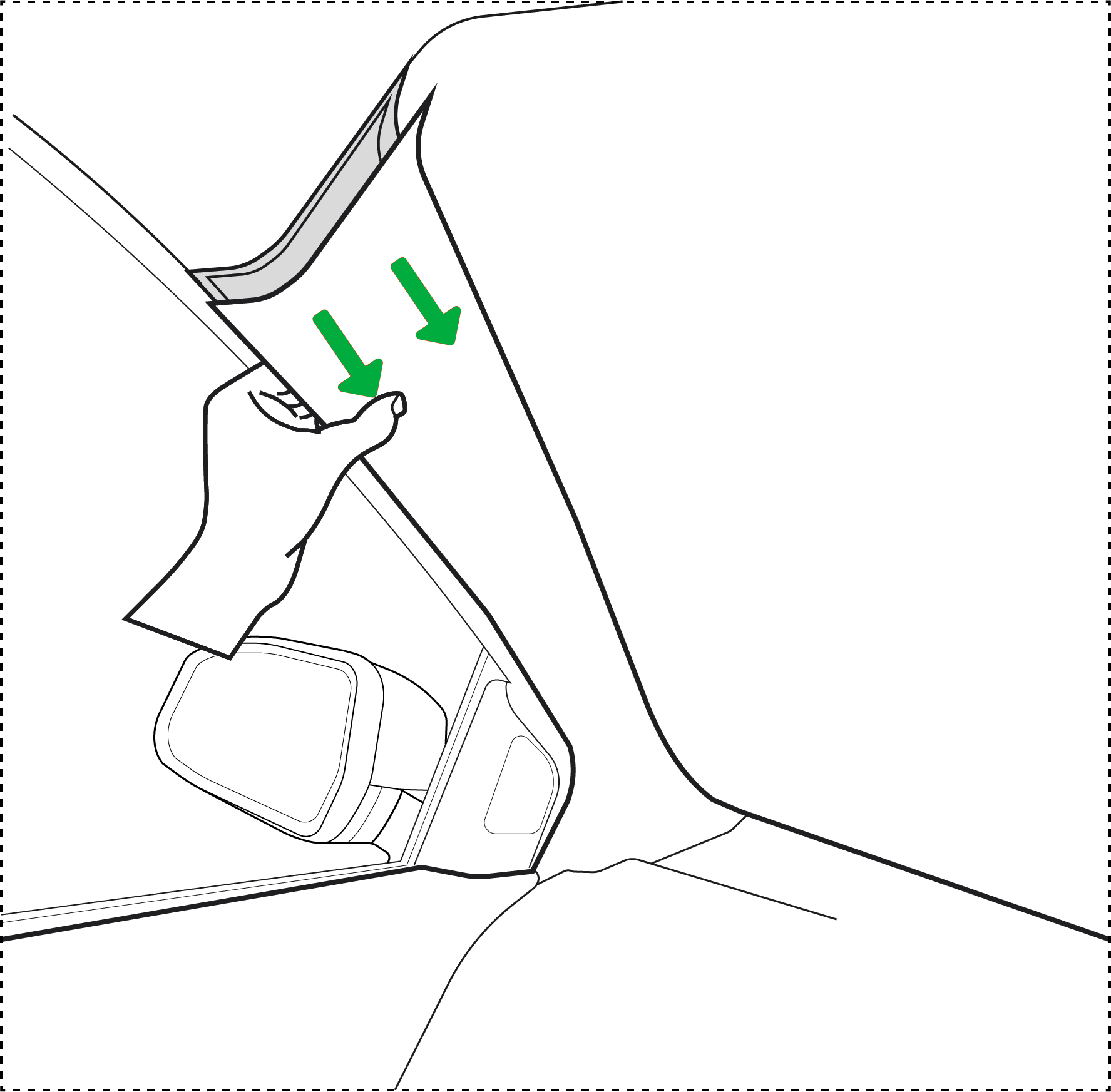

- If the connector is not behind the headliner, remove the A-pillar cover. This may be as simple as removing the screw or releasing the clip that holds the A-pillar in place. However, always consult the vehicle manual first.
Do not undo the clips that hold the airbag in place, to avoid setting off the airbag.
