Stop a camera from continuously rebooting - model 2
When a road-facing camera (model 2) is frequently resetting, it could be due to: incorrect wiring or installation; loose, pinched, or damaged cables; or a faulty DC power adapter.
Turn on the vehicle and wait 5 minutes for the camera to boot up. The red, blue, and green lights will flash in sequence.
You will hear a single beep. A single beep indicates your device is plugged in correctly and receiving power.
On
On/Off
Off
No sound
However, if the camera is continuously rebooting and the LED light sequence is intermittently solid red and flashing blue, gather your tools to prepare for a few checks.
If you see any other light sequence, troubleshoot the camera indicator lights.
Depending on your vehicle type, you might need some of the following tools:
-
Flashlight
-
Tools to remove vehicle panels
-
Key to open the camera’s security cover
-
Wire cutter
-
Find the camera’s power cables. These are usually tucked under the dashboard.
-
The camera is connected to a power source in one of two ways, depending on your vehicle type.
-
For light commercial or private vehicles (12 volts only) with an OBD-II connector, make sure that the cable in the port is firmly connected and skip to Step 3. Look for a loose connection.
-
For heavy trucks (12 volts only), light-duty vehicles manufactured before 1996 and heavy trucks with 9 pin connectors, go to Step 2. Check the wiring (3-wire connector).
-
This installation method is only recommended for advanced installers with experience of undertaking electrical wiring work.
-
-
-
Wiggle the black ground cable and ground terminals. Tighten if loose.
-

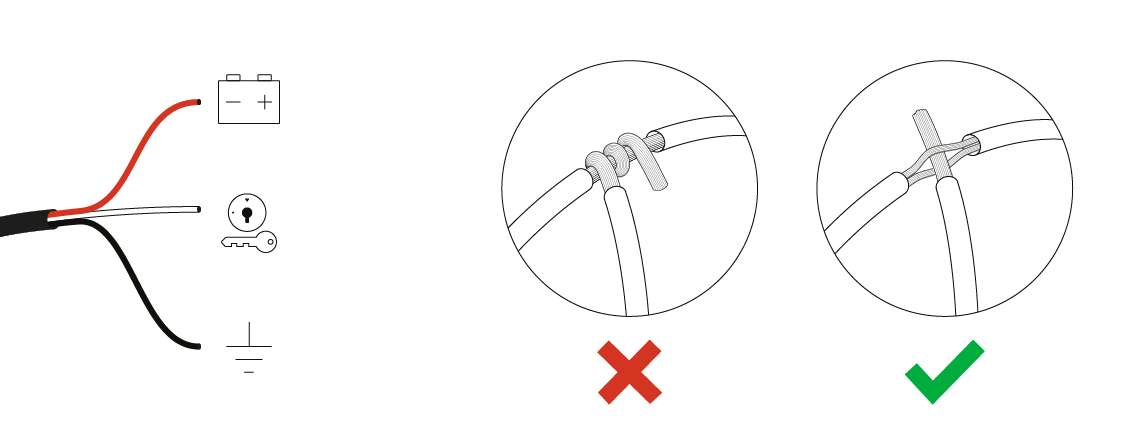

Find the black wire. It should have been installed using the Verizon-verified poke and wrap method.
-
If a different method has been used, follow these steps:
-
Locate the correct wire.
-
Strip the insulation from a section of the wire.
-
Make a hole through the exposed wire.
-
Insert the cable through the hole.
-
Wrap the cable tight and insulate with electrical tape.
-
Place zip ties over the electrical tape on each side of the connection.
-
-
-
Turn on the ignition.
-
Wait 5 minutes for the camera to boot up. The red, blue, and green lights will flash in sequence.
-
You will hear a beep and see solid blue and green lights. A single beep indicates your device is plugged in correctly and receiving power.
-
If the blue and green lights are not solid after 5 minutes, troubleshoot the camera indicator lights.
-
If the camera is still rebooting, go to Step 3.
-
Turn the ignition off.
-

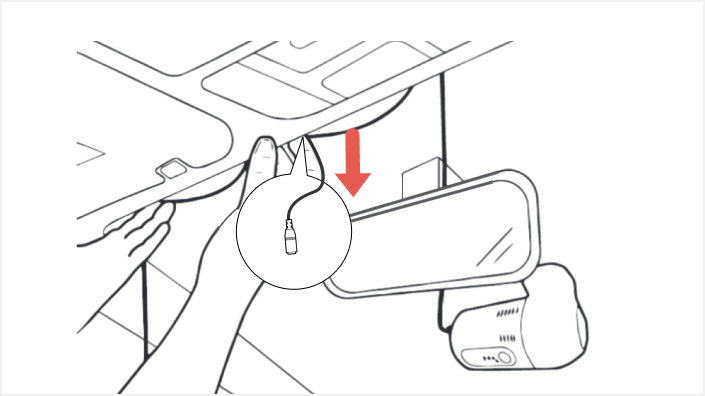

Find the snorkel cable which plugs directly into the camera.
-
Wiggle the cable to check for a loose connection.
-
If the cable is in poor condition, has a loose connection, bent pins, or the camera reboots, contact Support to order a new cable.
-
If the camera is still rebooting, go to Step 4.
-
Check the cables for any damage.
-
If you notice any visible damage, contact Support to order a new cable.
-
If the camera is still rebooting, go to Step 5.
Contact Support to explain the rebooting issue and request a replacement DC power adapter.
-
To install the replacement DC power adapter, locate the existing adapter under the dashboard or behind an interior panel.
-
Unclip the cables A and B from both sides of the adapter (DC IN and DC 5V OUT).
-
Remove the adapter.
-
Attach cables A and B to the new adapter.
-
Replace dashboards and interior panels, if required.
Discard the old adapter responsibly.
