This article explains how to set up a Vehicle Data Device (VDD) using the Reveal Hardware Installer app.

The workflow supports VDD installation with Y-cable, extension cable, and direct plug in.

For other vehicle trackers, read the Vehicle tracker workflow.

If you are installing a VDD in an emergency vehicle, ensure that you read the note in step 5.

Select the Installation Work Ticket.

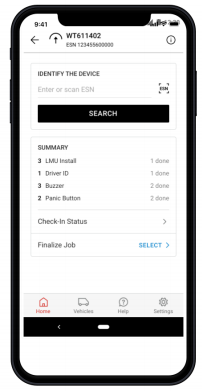

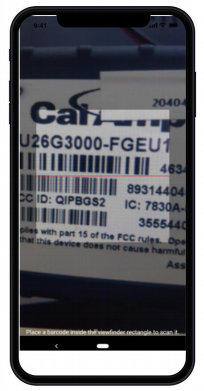

Scan or enter the IMEI for the VDD.
Tap Search.

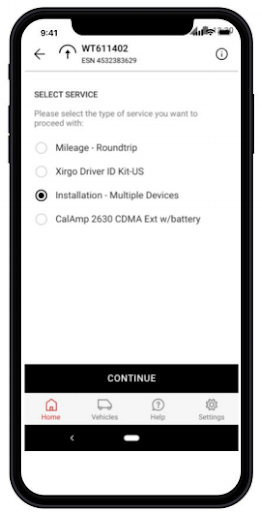

Select the Installation - Single or Multiple Devices line item.

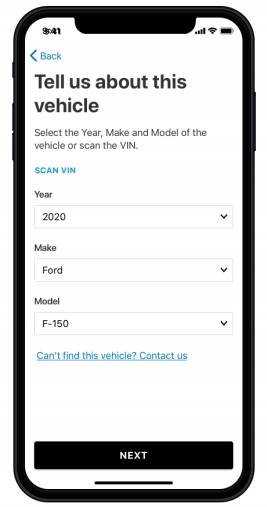

Enter the VIN or YMM (Year/Make/Model) information.

Caution

If you are installing the device in an Emergency Vehicle, do not enter the VIN manually, instead enter the following information:

- Year: The year that the vehicle was manufactured.

- Make: Select 'Emergency Vehicle'.

- Model: Select one of the following: 'Police Vehicle', 'Ambulance', 'Fire Engine' or 'Other'.

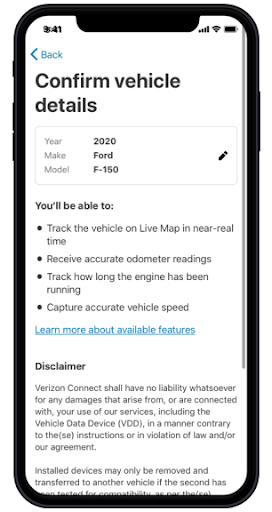

Confirm the vehicle details.

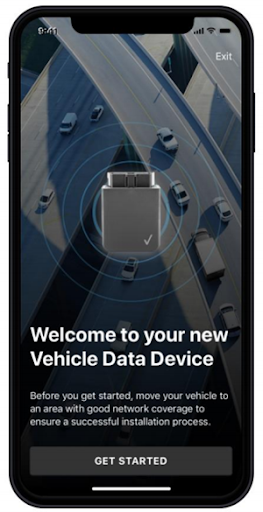

Tap Get Started.

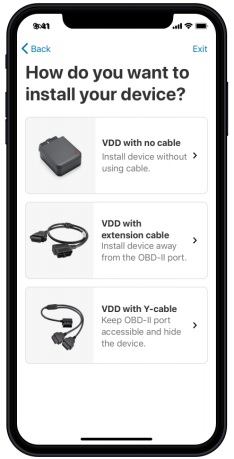

Choose the installation method.

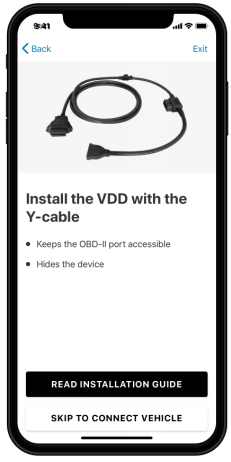

Select Skip to Connect Vehicle.

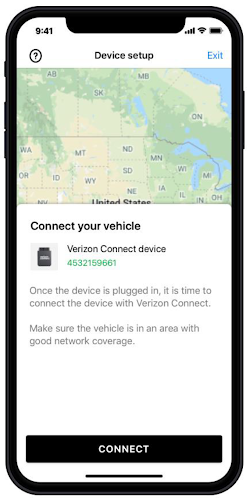

Once the Y-Cable and VDD are connected, select Connect on the Device Setup screen.

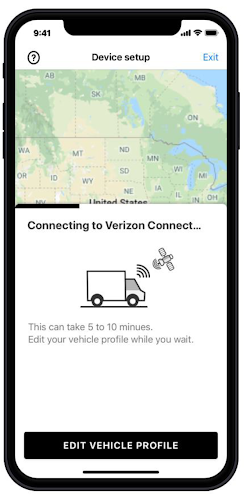

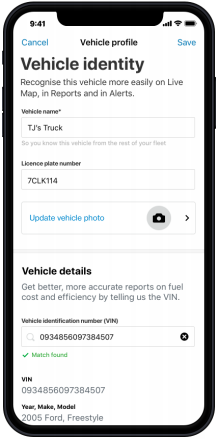

Select Edit Vehicle Profile to enter additional vehicle information while the device locks on.
Once all information including mileage has been entered, select Save.

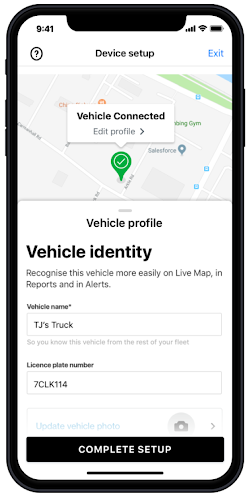

Once you receive the Vehicle Connected confirmation, select Complete Setup.

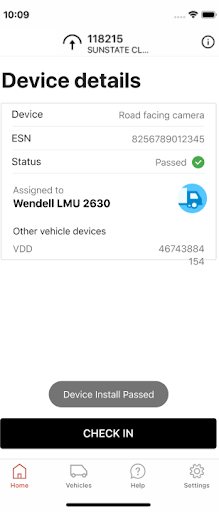

You will be brought back to the Vehicle Details screen, at which point you can Complete Check In.
