Removal guide: Non-powered asset tracker

This is a printed page that might be out of date. To read the most up-to-date help content, visit https://device-help.verizonconnect.com.

Skill level: Basic

The installation can be performed quickly and easily by individuals of any ability.

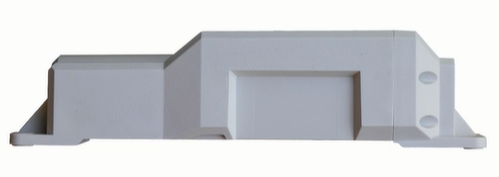

This guide explains how to remove a non‑powered asset tracker such as the CalAmp TTU‑730.

Time required: 15 minutes or less.


Before you begin

Read this entire guide before starting to remove a non-powered asset tracker to ensure a smooth process.

Gather your tools

Depending on the asset type, you may need the following tools:

  • Work light

  • Screwdriver

  • Driver bits and socket set

  • Diagonal wire cutters (no scissors)

Prepare the asset

Note

Non-powered asset trackers rely exclusively on their own power and do not have any external wiring. They are used on mobile assets that either don't have accessible power or have an unreliable power source. In general, non-powered assets are more stationary in use than powered assets. They include generators, compressors, light towers, boom lifts, large storage containers, skip bins, sand bins, pumps, portable toilets, specialty tanks, frac tanks, and parked trailers.

  1. Move the asset to a suitable location for the removal.

  2. Note any obvious signs of damage and report it to the contact person.

Procedure

Step 1: Locate and access the non-powered asset tracker

  1. Locate the non-powered asset tracker on the asset.

    Note

    A non-powered asset tracker is usually on the outside of the asset, with a direct line of sight to the sky.

    On parked trailers, the non-powered asset tracker is usually on the trailer tongue, the hitch rail, the side rails, or the front bulkhead.

  2. Remove all screws that secure the powered asset tracker in place.

  3. If present, remove the mounting bead of silicone from between the non-powered asset tracker and the mounting surface.

Step 2: Restore the asset

Restore the asset back to its original condition as follows:

  1. Replace all panels that were removed, and ensure they are seated properly.

  2. Ensure all excess silicone is removed.

  3. Check the general area for screws, wire scraps and tools.

Step 3: Record the device and asset information

The non-powered asset tracker can later be identified by the serial number.

  1. Record the non-powered asset tracker serial number within Reveal.

    Note

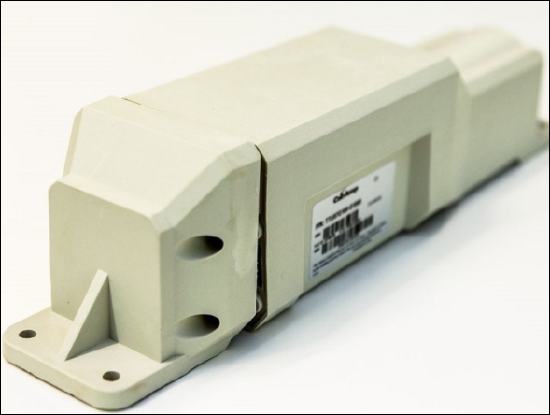

    The serial number is on the back of the device (see image below).

  2. Record the details of the from which you removed the non-powered asset tracker.

  3. Contact Support if necessary to register removal of the non-powered asset tracker.

Step 4: Return equipment

  1. Return any keys to the customer.

  2. Identify equipment to be returned to the customer if applicable.

    • Professional installers: inform the customer of equipment to be returned.

    • Self-installers: Contact Support to arrange return of equipment.

Disclaimer

Verizon Connect shall have no liability whatsoever for any damages that arise from, or are connected with, your use of our services, including the GPS tracking hardware and dash cams, in a manner contrary to the(se) instructions or in violation of law and/or our agreement. Tracking hardware connected to the diagnostic port in any vehicle that has third-party devices also connected to the diagnostic port can cause interference or loss of functionality of the third-party device. These third-party devices include, but are not limited to, wheelchair lifts, lifesaving equipment, emergency lighting, and radar guns. If such a conflict exists, contact Verizon Connect support to have the tracking hardware configured to support the third-party device. Failure to do so relieves Verizon Connect of all liability for damages that arise from or are connected with your use of the devices. Installed devices may only be removed and transferred to another vehicle if the second vehicle has been tested for compatibility, as per the(se) instructions. Transfers between vehicles which do not follow the(se) instructions will void any and all warranties from Verizon Connect, and relieve Verizon Connect of all liability for damages that arise from or are connected with your use of the devices.
