This article explains how to install a CP2 Road-facing camera using the Reveal Hardware Installer app.

  1. Navigate to the Work Ticket for the Install.

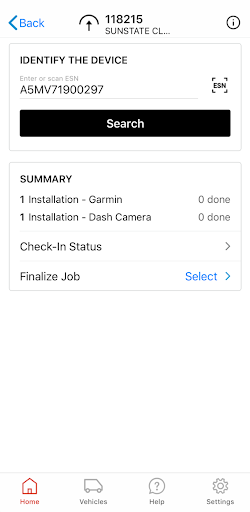

  2. Select Scan to scan the barcode on the Road-Facing Camera.

    Note

    You can also manually search for the camera by entering the Serial Number (ESN) into the search bar and tapping Search.

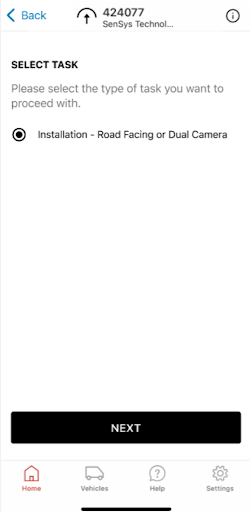

  3. Select Installation - Road Facing or Dual Camera.


  4. Tap Next.

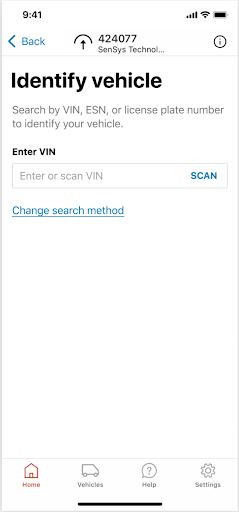

  5. Pair the camera with a device by entering/entering the VIN, or the license plate, or the device ESN (for VTU), or IMEI (for VDD).

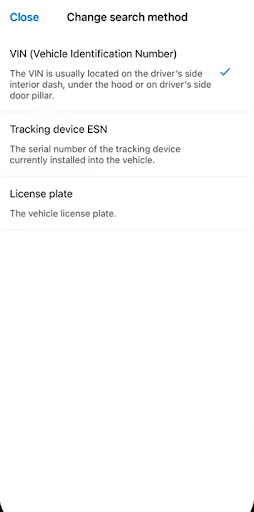

  6. Toggle between search options by selecting Change search method.

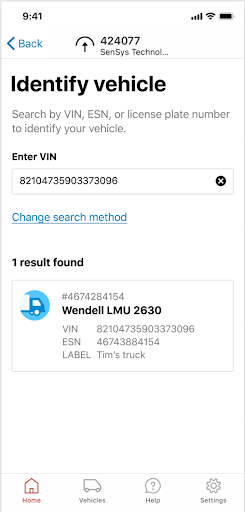

  7. Tap on the result once the correct vehicle has been found.

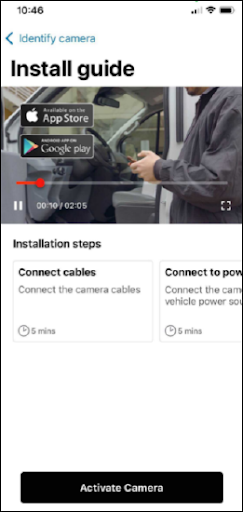

  8. The next screen displays the install guide video and an overview of the Installation steps. When ready, tap Activate Camera.

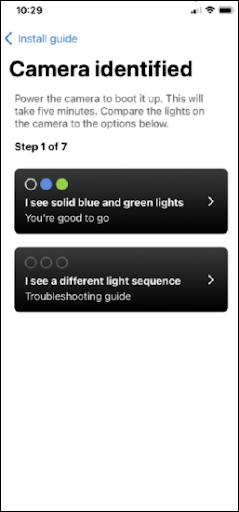

  9. Power the camera to boot it up (this will take 5 minutes). Look at the lights on the camera and select either: I see solid blue and green lights OR I see a different light sequence.

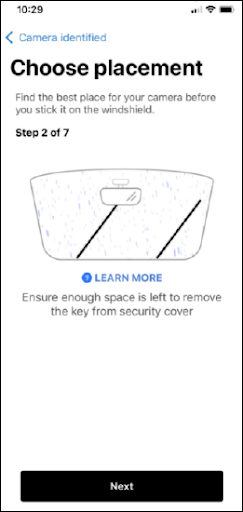

  10. Choose the best placement for the camera before sticking it on the windshield, but do not attach it yet.


  11. Tap Next.

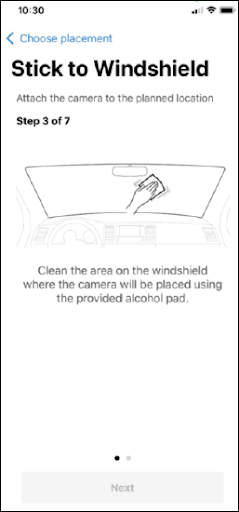

  12. Clean the windshield using the alcohol wipes provided. Ensure that it is thoroughly dried.

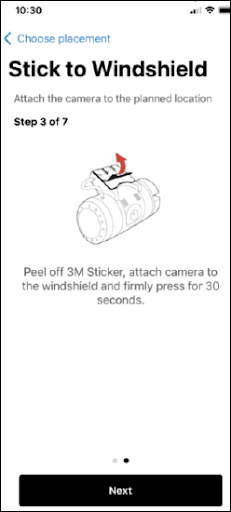

  13. Attach the camera to the windshield and hold for 30 seconds.


  14. Once the camera is secure, select Next.

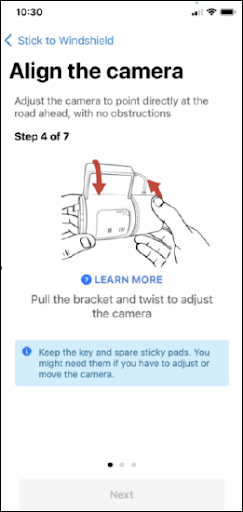

  15. Align the camera to point directly at the road ahead, and pull the bracket and twist to adjust the camera.

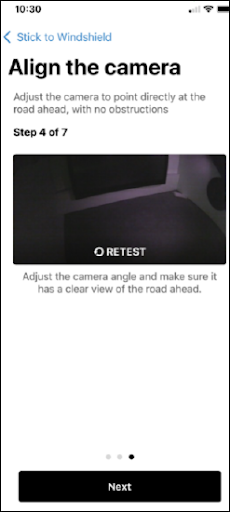

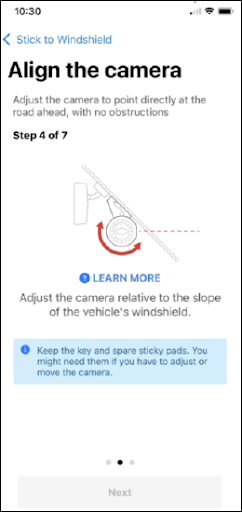

  16. Continue swiping through the screens, adjusting the alignment as necessary.


  17. When ready, tap Next .

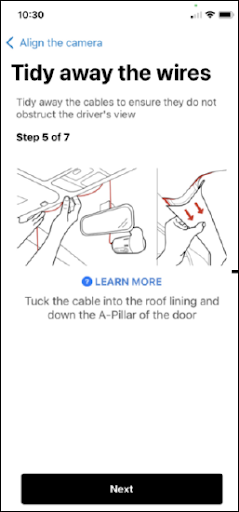

  18. Tuck the cable into the roof lining and down the A-Pillar of the door and then select Next.

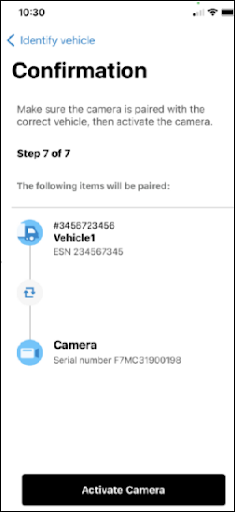

  19. On the Confirmation screen, make sure the camera is paired with the correct vehicle and press Activate Camera.

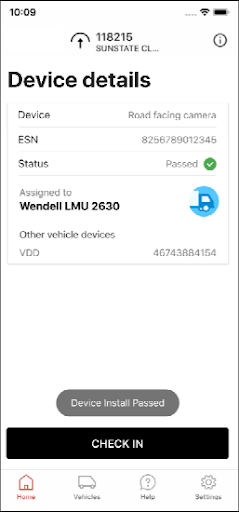

  20. Review installation details, and select CHECK IN to complete.


Next: Driver-facing camera workflow.
