AI Dashcam

This is a printed page that might be out of date. To read the most up-to-date help content, visit https://device-help.verizonconnect.com.

This article explains how to install an AI Dashcam using the Reveal Hardware Installer app.

If you already have a Road-facing camera and wish to upgrade to a dual-facing camera, you should instead use: Technician guide: Dual-Facing AI Dashcam using Reveal Hardware Installer app.

Note

A VTU must be installed in the vehicle before you can add an AI Dashcam.

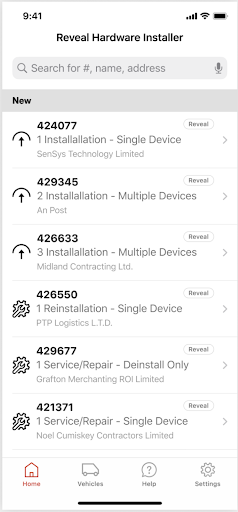

  1. Navigate to the Work Ticket for the Install.

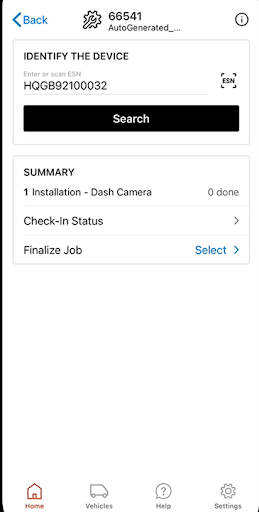

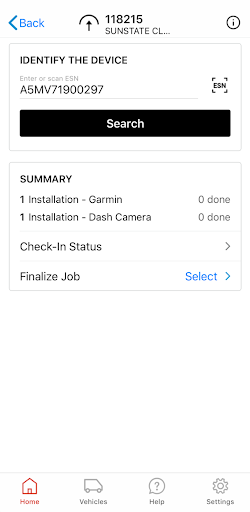

  2. Input the Camera ESN by using the ESN Scan button. Alternatively, you can input the camera ESN manually by typing it in.

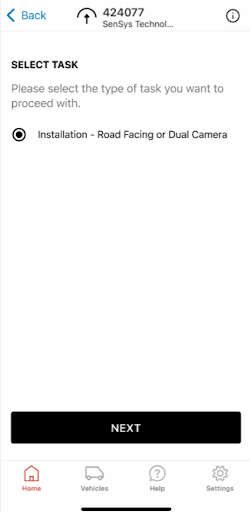

  3. Select the task Installation - Road Facing or Dual Camera.


  4. Tap Next.

  5. Identify the VTU to pair the camera with by scanning/entering the VIN, or by entering the license plate or ESN (for VTU), IMEI (for VDD).

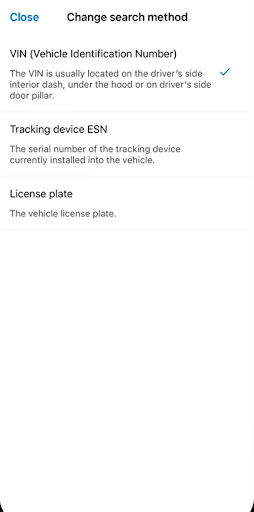

  6. Toggle between search options by selecting Change search method.


  7. Tap on the result once it has been found.

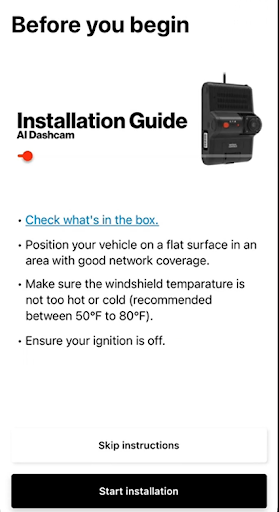

  8. You’ll be brought to the Before you begin page. First time users should review the instructions in their entirety.


  9. When ready to proceed with the installation, select Start installation.

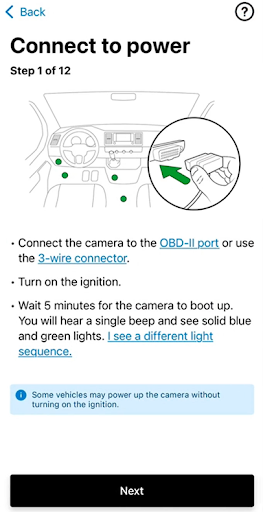

  10. Connect to power, turn on ignition and wait 5 minutes for boot up.

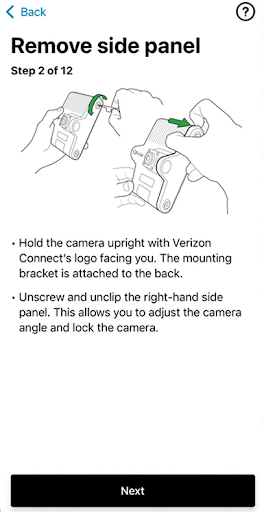

  11. Remove the camera side panel.

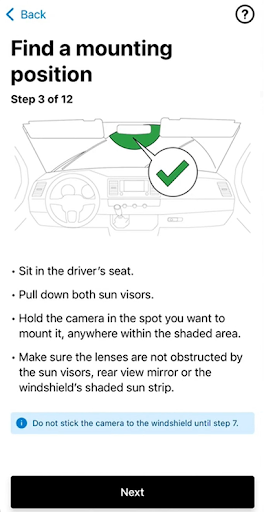

  12. Choose the best placement for the camera before sticking it on the windshield, but do not attach it yet.

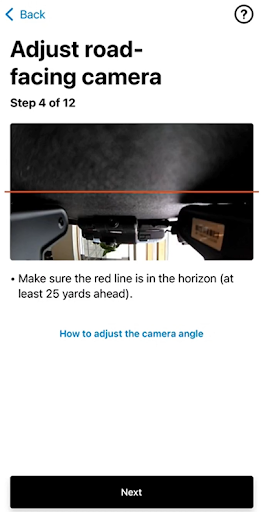

  13. Adjust the road facing camera angle so it is evenly centered on the horizon.

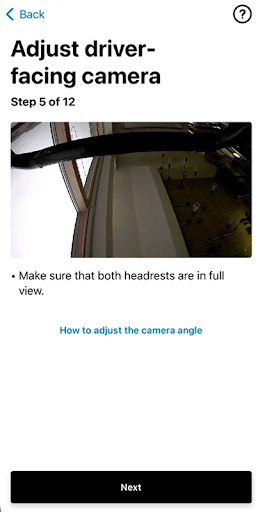

  14. If the unit has a driver-facing camera, complete the same steps of aligning the camera so both headrests are in full view.

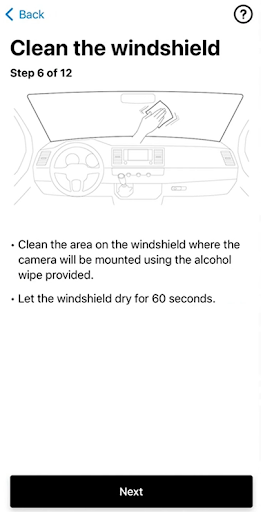

  15. Clean the windshield using the alcohol wipes provided. Ensure that it is thoroughly dried.

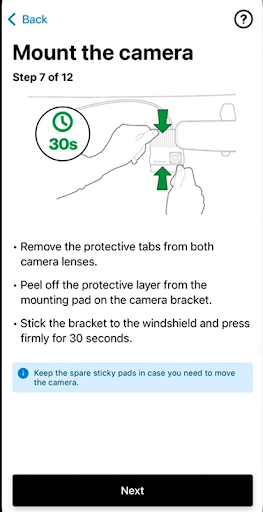

  16. Mount the camera and bracket, and hold firmly for 30 seconds.


  17. Remove the road-facing camera from the bracket.

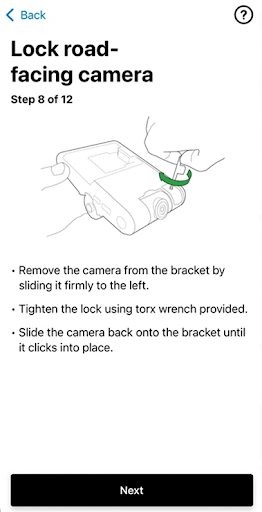

  18. Lock the road-facing camera in position.

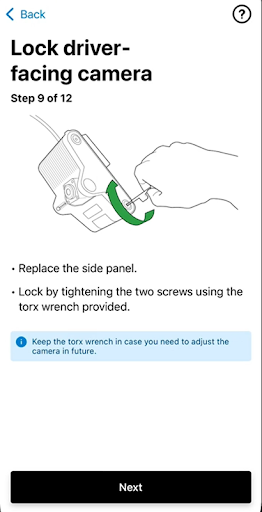

  19. If the unit has a driver-facing camera, lock it into position.

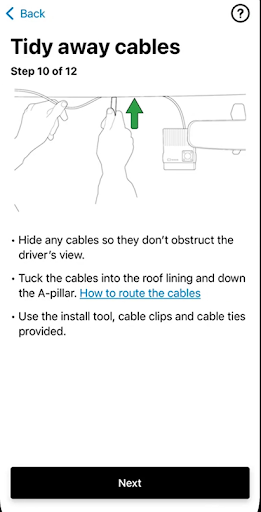

  20. Tuck the cables into the roof lining and down the A-pillar using the tools and supplies provided.

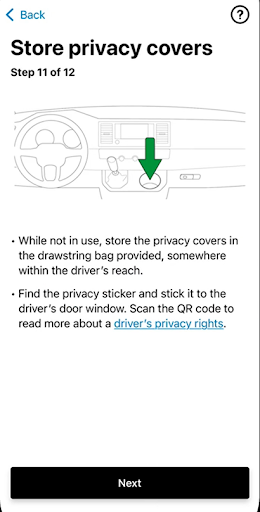

  21. Place the privacy covers in the drawstring bag provided.

    Note

    Make sure that it's easily accessible/visible to driver - like a cup holder or driver side door panel.

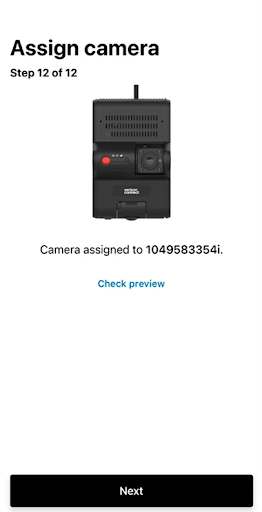

  22. A temporary loading screen will show while the camera pairing takes place, then a confirmation once completed.

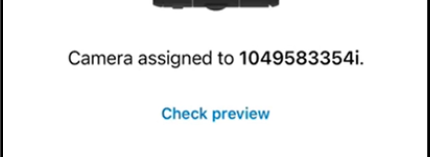

  23. To view alignment, select Check preview.


  24. Select Check preview to view the camera alignment.

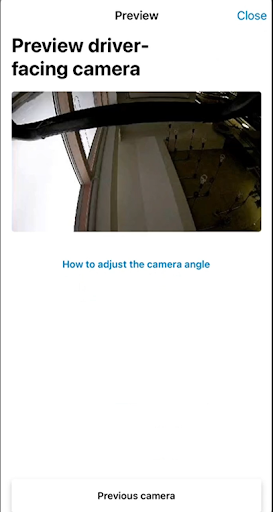

  25. If a driver-facing camera is installed, select Next camera to view its alignment.


  26. Select Close on the top right when completed.

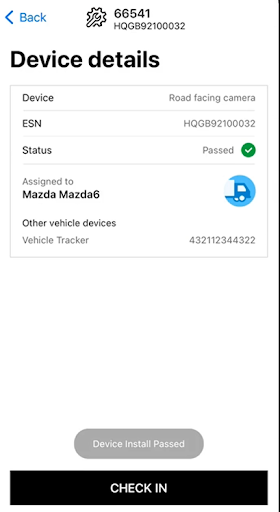

  27. Review installation details, and select CHECK IN to complete.


Next: Replacing a 3G vehicle tracker with a VDD .
