Installation guide: Panic/privacy button

This is a printed page that might be out of date. To read the most up-to-date help content, visit https://device-help.verizonconnect.com.

This guide explains how to install a panic/privacy button.

Time required: 15 minutes

Technicians must Contact Support to update a device's configuration file to enable the Panic/Privacy button feature.

Refer to the vehicle tracker installation guide.
Perform the vehicle tracker installation as far as the section about adding optional peripherals.

Depending on the vehicle type, you may need the following tools:

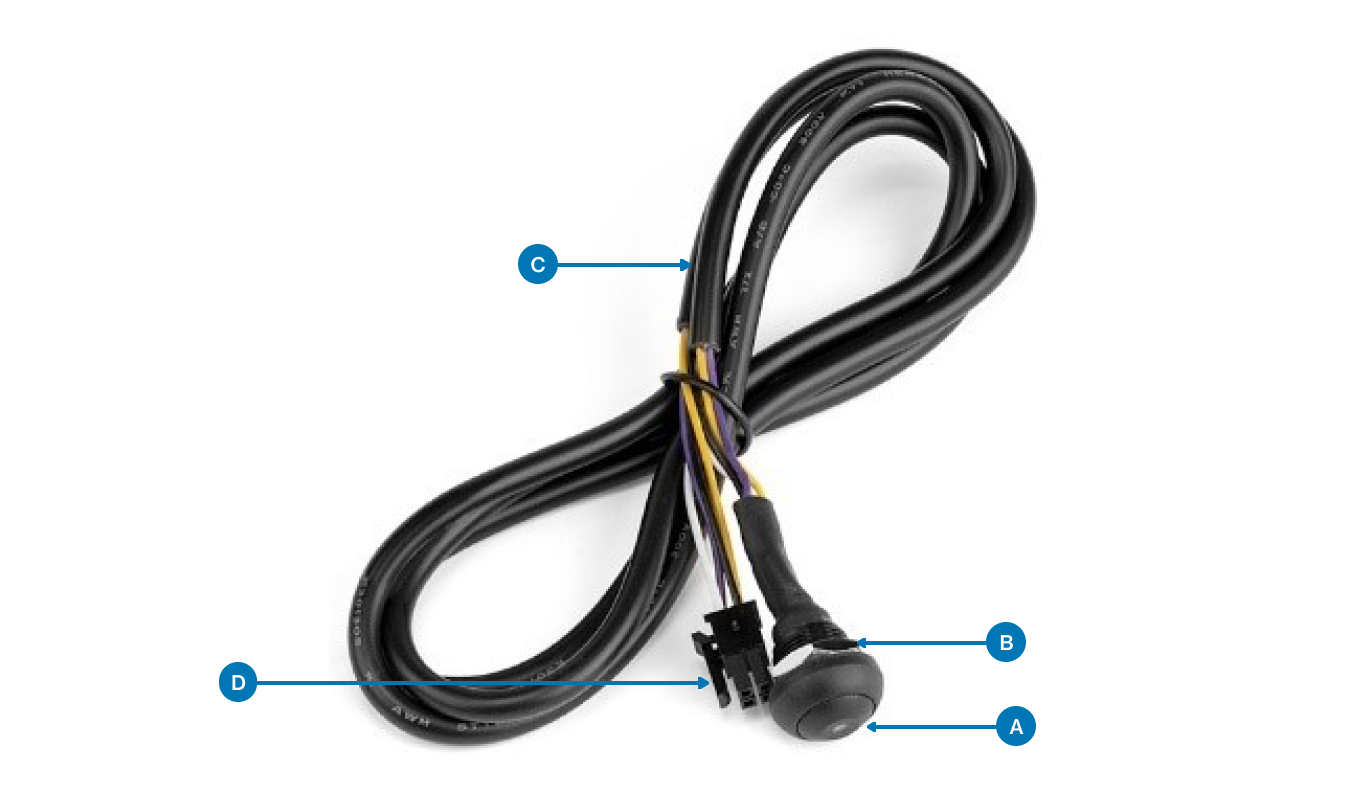

(A) Panic/privacy button with LED

(B) Lock nut and washer

(C) Cable

(D) Connector for the vehicle tracker (connects to either an adapter or directly to the vehicle tracker).

Find a suitable location for the panic/privacy button on or around the vehicle dash.

Note

The button must be located within easy reach of the driver.

Caution

The button should not be mounted in the driver's line of sight. The button’s LED can be bright at night and may dazzle the driver.
Check behind the chosen location to ensure there is enough space to mount the button.

Note

There should be at least 1 inch (3cm) of space behind the panel to give the button harness adequate clearance. If there is not enough clearance, the mounted button could put stress on the panel or on components behind the panel.

Drill a 10 mm (13/32 inch) hole at your chosen mounting location.

Caution

Drilling a panel could damage components that are behind the panel. Always look before you drill so you do not damage adjacent equipment.
Loosen and remove the lock nut and washer from the back of the panic/privacy button
Pull the cable through the drilled hole.
Reattach the lock nut and washer.

Note

Do not over tighten the lock nut on the back of the panic/privacy button as this can damage the button or the vehicle panel.

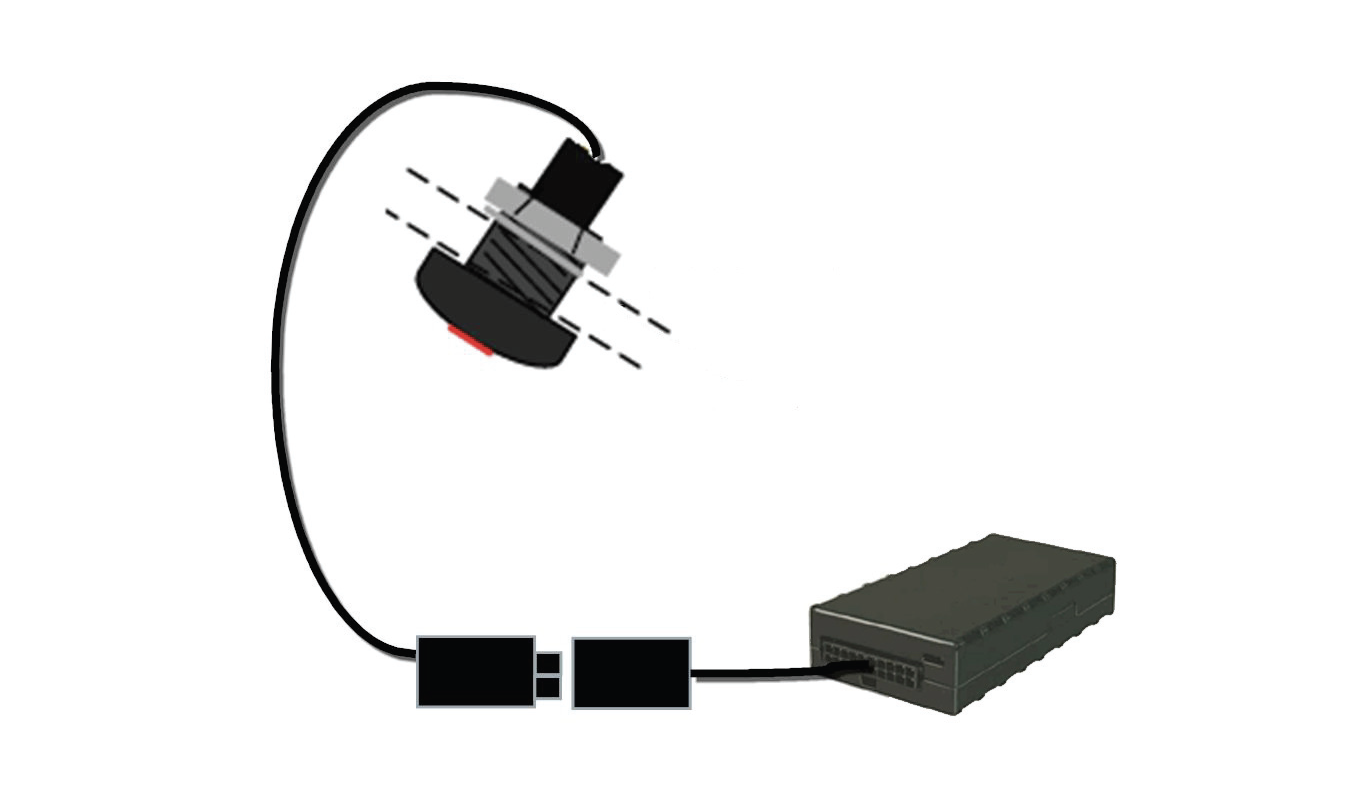

Attach the button’s cable to the matching 4-pin connector of the vehicle tracker’s I/O harness.
Secure all loose or excess cables.

Caution

Do not over tighten the lock nut on the back of the panic/privacy button as this can damage the button or the vehicle panel.

Start the vehicle.
Press and hold the panic/privacy button for 1 second.

The button’s LED turns on and remains on for the duration of the privacy session.
To reset or turn off the privacy feature, press and hold the button for 1 second.

With the vehicle on or off, press and hold the panic/privacy button for 7 seconds.

The LED will flash continuously.

Note

Do not over tighten the lock nut on the back of the panic/privacy button as this can damage the button or the vehicle panel.
To reset or turn off the panic feature, press and hold the button for 10 seconds.
