Technician guide: CalAmp LMU 26XX and 27XX on Reveal
Skill level: Expert
Installers must have a working knowledge of vehicle electrical and starting systems, and know how to use relays, diodes, sensor inputs.
Estimated time for install: 20-30 minutes
This article outlines how to install all CalAmp 26XX and 27XX series vehicle trackers.
- Preparing for installation
- Installing the device
- Installing driver ID
- Mounting the device
- Verifying operation
Preparing for installation
Before you install the device, there are a few things that you need to do to ensure a smooth installation process.
Check the box contents
You should receive the following:
- CalAmp 26XX OR CalAmp 27XX
- 3-wire harness
- I/O harness (optional)
Get your fleet ready
We recommend installing the device outdoors in an area with good network coverage.
Gather your vehicle information
To complete the setup you need to enter the following information for each vehicle:
- Vehicle name - give your vehicle a name that makes it easily identifiable on Live Map and in reports.
- Vehicle license plate
- Year, make and model of vehicle
- Current odometer reading
Gather your tools and supplies
Depending on your vehicle type, you might need some of the following tools:
- Dash panel removal tools
- Wire stripping tools
- Digital voltmeter
- Cordless drill
- General purpose screwdriver bit set
- Sockets (standard/metric)
- Work light
- Electrical tape - Super 33 grade or better
- Extra zip ties
- Extra self-tapping screws
- Extra heat shrink ring terminals, butt connectors, and a mini-torch
- Add-A-Circuit fuse adapters
Installing the device

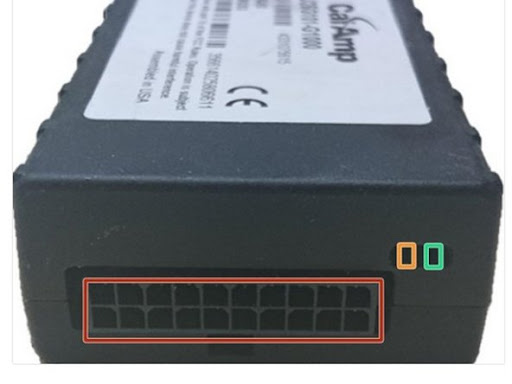

1. Identify parts of the device
- Red = 20 pin I/O port
- Amber = Com LED
- Green = GPS LED
2. Choose where to mount the device
The device must be mounted:
- Label side up.
- Concealed from the driver’s view.
- High in the dash for the best signal.
- With a clear line of sight out of the vehicle
- Away from heavy metallic surroundings.
Never mount the device in the engine compartment, directly on top of the AM/FM radio, by any moving parts, or in a location that would be exposed to the elements.
3. Record the device and vehicle information

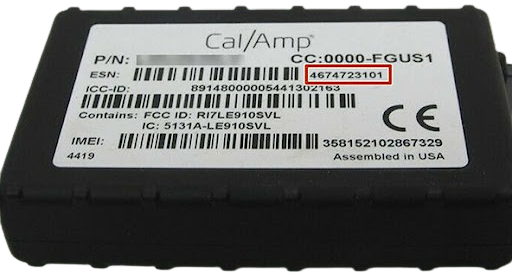

Record the device Equipment Serial Number. You need this along with the vehicle details, to verify the installation.
The ESN label is on the bottom of the device.
4. Connect the 3 wires of the power harness to the vehicle's electrical system
DO NOT connect the power harness to the vehicle tracker at this time.
The vehicle tracker requires 3 connections: GROUND, IGNITION, and POWER.
- Connect the ground line wire (black) to the body or frame of the vehicle, for example the chassis.
- Use a ring terminal to terminate the ground wire to the chassis with a self-tapping screw or a factory bolt.
- Connect the ignition input wire (white) to an ignition source that will only receive power when the ignition is ON.
- Connect the power input wire (red) to a battery source where there is constant power, even when the ignition is OFF.
- Connect directly to the vehicle battery terminal or as close to it as possible. This connection point should be fuse protected to not more than 5 amps.
To determine a true ignition power source:
- Select a wire.
- With the engine OFF, use a voltmeter to measure the DC voltage on the wire. It should show 0 volts.
- Turn the key to the Accessory position. The voltage should still show 0 volts.
- Turn the key to the On/Run position. The voltmeter should show 12 volts.
- Crank the motor and make sure that the voltage does not drop below 9 volts.
- While the vehicle is running, confirm that the voltage on the same wire is 12 volts or higher.
- Turn the vehicle’s engine OFF and confirm that the voltage on the same wire is 0 volts.
If the voltage does not display as indicated here, you are not testing a true ignition wire.
If the installation requires extending the harness’ ignition wire outside the cab and directly to an alternator or solenoid, protect the wire and connection using a heat shrink ring terminal, dielectric grease, and wire loom along with a weatherproof fuse holder, and fuse of 3-5 amps.
5. Connect the power harness to the vehicle tracker
Plug the 3-wire harness into the I/O port.
6. Confirm that the vehicle tracker is connected correctly
Check the device’s LEDs.
Green LED - GPS signal
- Flashes when the GPS signal has been established. The green LED gives one long flash, then flashes rapidly, once for each satellite the VTU is connected to. A VTU that flashes once, then 8 more times, is connected to 8 satellites.
Amber LED - Cell signal
- Flashes slowly when the ignition is OFF, then becomes solid once the cell signal has been acquired and the ignition is ON.
- If the amber LED flashes while the ignition is ON then the VTU has not acquired a cell signal.
The amber LED also flashes to verify when a sensor input has been detected. It flashes once every 2 seconds for activity on input 1, twice every 2 seconds for activity on input 2.
7. Install optional peripherals
- Plug required accessories into the matching Molex sockets on the accessories cable.
- Install the accessories as described in these guides.
8. Mount the device
- Due to the internal accelerometer, the device must be secured with zip ties, VHB tape, or Velcro. Don’t tape over the ESN on the label (the label will peel and be unreadable when the tape is removed).
Video: How to secure hardware and harnesses with cable ties
- Secure the device firmly so it cannot move around.
If the device is not secure, it will impact the accuracy of harsh driving events.
- Tidy up the cable and secure it with zip ties.
- Check everything is fastened tightly and cut off excess length of zip ties if needed.
If you’re a Reveal customer, verify your installation in Reveal.
If you’re a professional installer using Reveal, use the Reveal Hardware Installer app.
If you’re installing a device in Fleet, use the Fleet Installer Portal.
