Installation guide: CalAmp LMU 36xx | 3-wire (Reveal and Fleet)

Time required: 15-30 minutes

This guide explains how to install a CalAmp LMU-36xx series device using 3-wire power connections.

The installed hardware must be enabled and configured before use (see Step 14: Enable and configure installed hardware).

In this guide:
Step 1: Position the vehicle
Step 2: Gather your tools
Step 3: Check the kit contents
Step 4: Identify the device parts
Step 5: Record the device ESN
Step 6: Identify the harness parts
Step 7: Find a suitable location to mount the device
Step 8: Make the 3-wire connections
Step 9: Connect the harness to the device
Step 10: Connect optional peripherals
Step 11: Use the LED lights to identify the device status
Step 12: Route the cables and secure the device
Step 13: Verify operation
Step 14: Enable and configure installed hardware

Step 1: Position the vehicle

Position the vehicle in a location that has good network coverage.

The engine must be off when you are installing the device.

Step 2: Gather your tools

Depending on the vehicle type, you may need the following tools:

• Dash panel removal tools
• Wire stripping tools
• Digital multimeter
• Cordless drill
• General purpose screwdriver bit set
• Sockets (standard/metric)
• Work light and a mini-torch

You may also need:

• Add-A-Circuit fuse adapters
• Electrical tape - Super 33+ grade or better
• Heat shrink ring terminals and butt connectors
• Self-tapping screws
• Zip ties

Step 3: Check the kit contents

• CalAmp LMU-36xx device
• 24 pin harness (with 3-wire connections)

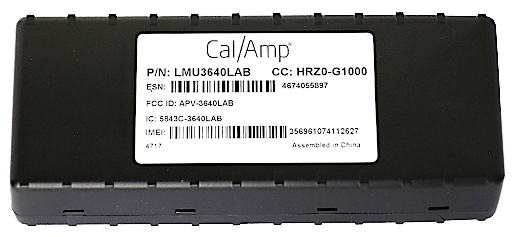

Step 4: Identify the device parts

(A) Information label
(B) Device Equipment Serial Number (ESN)
(C) Fastening tabs

*(D) Blue LED to indicate Bluetooth connection (Fleet platform only)
*(E) Amber LED to indicate cellular network signal
*(F) Red LED to indicate diagnostics connection (diagnostics equipped devices on Reveal platform only)
*(G) Green LED to indicate GPS signal
(H) 14-pin diagnostics connector plug
(I) 24-pin I/O connector plug

*Refer to CalAmp 36xx - Reveal and Fleet LED indicator light patterns.

Step 5: Record the device ESN

Record the device's Equipment Serial Number (ESN). You will need it later to link and verify the installation.
The device ESN is on the device’s information label (see Step 4 above).

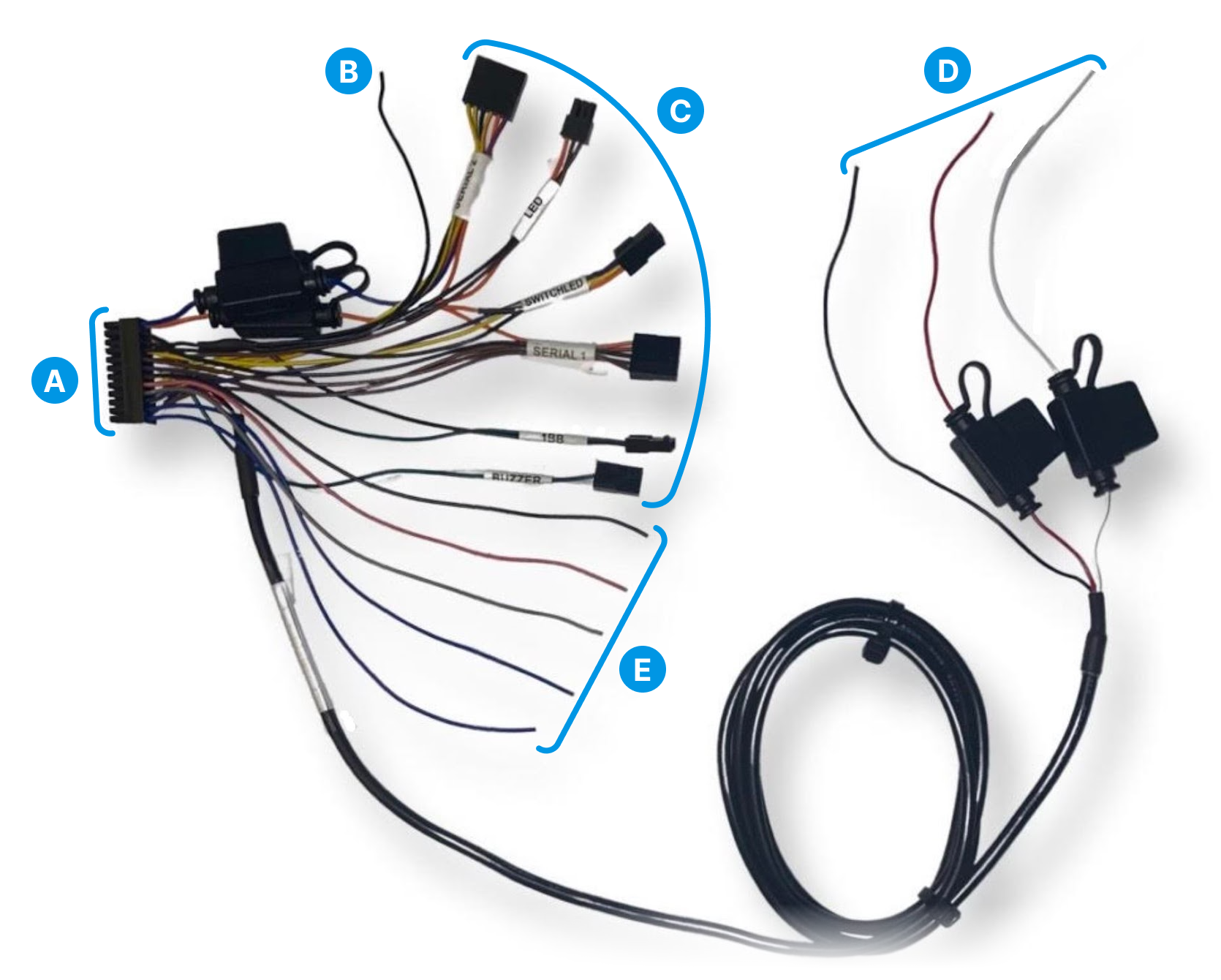

Step 6: Identify the harness parts

(A) 24-pin plug (connects to CalAmp device)
(B) Black wire (spare ground wire)
(C) Connectors for optional peripherals (refer to Step 9 below)
(D) Wires for 3-wire power (refer to Step 7 below)
(E) Wires for sensor inputs (refer to Sensor inputs below)
All fuses are 3 amp.

For more details, see CalAmp 36xx I/O Accessory Harness descriptions and wiring diagram.

Step 7: Find a suitable location to mount the device

Find a suitable location to mount the device. Suggested mounting locations are shown below.

Behind the driver’s side knee panel (A)
Behind the instrument cluster (B)
Behind the center console (C)
Behind the glove box (D)

Consider the following when choosing the mounting location:

• Network coverage at the mounting location:
  • The device should be mounted label-side up and skyward-facing.
  • The device should not be mounted directly under large metal parts.
    The device will work through glass, plastic and composites.
• Space at the mounting location:
  • There should be ample space for you to secure the device firmly with zip ties.
  • The mounted device must not obstruct the operation of the vehicle.
• Possibility of damage to the device or cables:
  • Avoid heat sources (for example, a heating vent or duct).
  • Avoid sharp surfaces.

Step 8: Make the 3-wire connections

1. Familiarize yourself with approved methods for making 3-wire connections:
   For information about butt connectors, posi-tap and add-a-circuit fuse block adapters: see Verizon Connect Installation and electrical connection policy guidance.
   For information about poke-and-wrap: see FAQ: How to make a poke and wrap connection (solderless splice)
   The image below shows a connection made using the poke-and-wrap method.

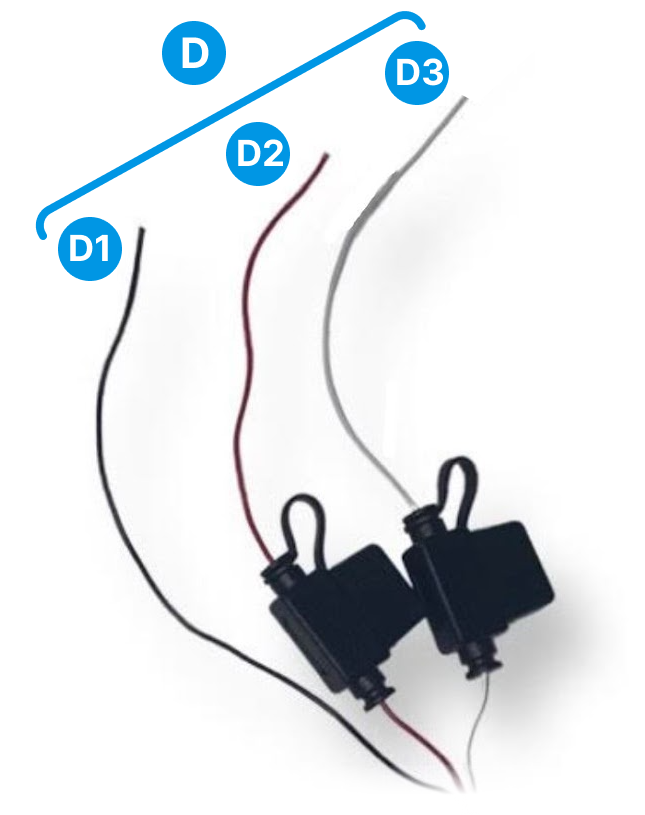

2. On the harness, identify the wires for 3-wire power.

   (D1) Black wire (connects to ground)
   (D2) Red wire (connects to power)
   (D3) White wire (connects to ignition)
3. Connect the red wire to a constant power (batt+) source.
4. Connect the white wire to a true ignition source such as the ignition switch, factory spare wire connectors labeled for such use, or the fuse box.
   Use a digital multimeter to verify the voltage doesn't drop below 9 VDC while the engine is cranking.
5. Connect the black wire to ground.

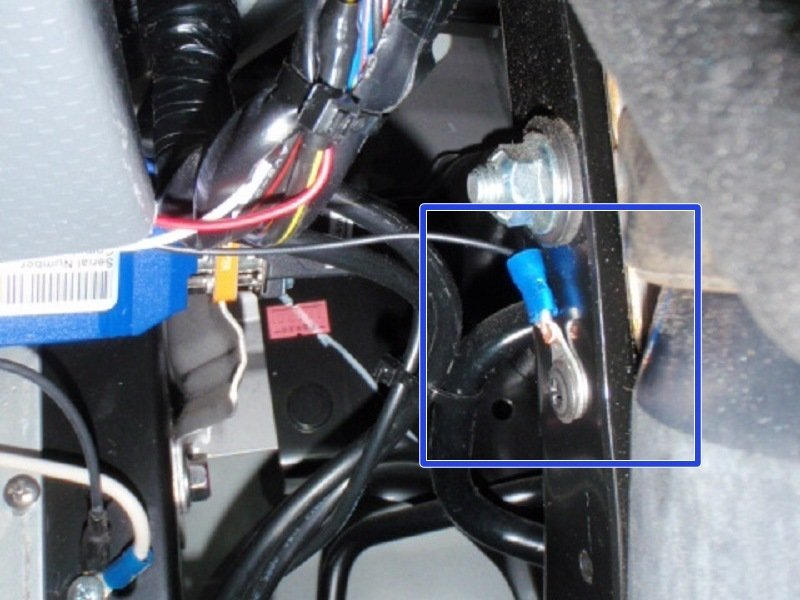

   On light-duty vehicles, terminate the ground wire to the chassis using a ring terminal and self-tapping screw, a factory-marked grounding bolt, or a factory-marked spare wire labeled for such use.

   On heavy-duty vehicles, connect the ground wire to a factory-marked spare ground wire or grounding point labeled for such use.
   On heavy-duty vehicles do not make a chassis ground using a ring terminal and self-tapping screw. Recent models typically have the chassis and frame separated, and this can cause electrical issues for a chassis ground.

Step 9: Connect the harness to the device

Plug the 24-pin harness connector into the CalAmp LMU-36xx device.

Step 10: Connect optional peripherals

This step is only for installations that have optional peripherals or sensor inputs.

Peripherals that can be monitored using sensor input connections include PTOs, booms, brooms and plows.

1. On the harness, identify the connectors for optional peripherals.

   (C1) Serial 2 connector plug
   (C2) LED connector plug (see Canadian ELD Compliance Solution for Fleet Installation Guide)
   (C3) Switch LED connector plug
   (C4) Serial 1 connector plug (connects to Garmin)
   (C5) 1-Bit bus connector (connects to Driver ID reader or Temperature Sensor)
   (C6) Driver ID buzzer connector plug (use with Canadian ELD dongle for indicator light)
2. Plug the 24-pin connector into the CalAmp LMU-36xx device.
3. Connect the peripherals harness to the corresponding Molex connector.
   Refer to the following guides as relevant along with the Sensor inputs section below:
   Installation guide: Driver ID (Reveal and Fleet)
   Technician guide: Temperature probe on Fleet (Fleet only)
   Technician guide: Magnetic door sensor (Fleet only)

Sensor inputs

Inputs require a minimum voltage transition of ±6 volts up to 30 volts maximum.
Inputs should switch between negative and positive, or negative and open polarity unless otherwise directed. A 5 pin SPDT relay may be required for sensor input installation.

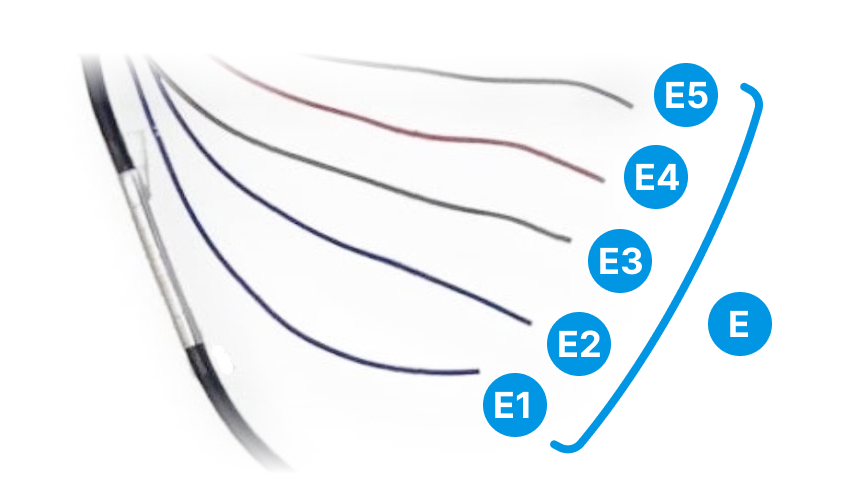

1. On the harness, identify the wires for sensor inputs.

   (E1) Blue wire
   (E2) Blue/orange wire
   (E3) Purple wire
   (E4) Gray wire
   (E5) Pink wire

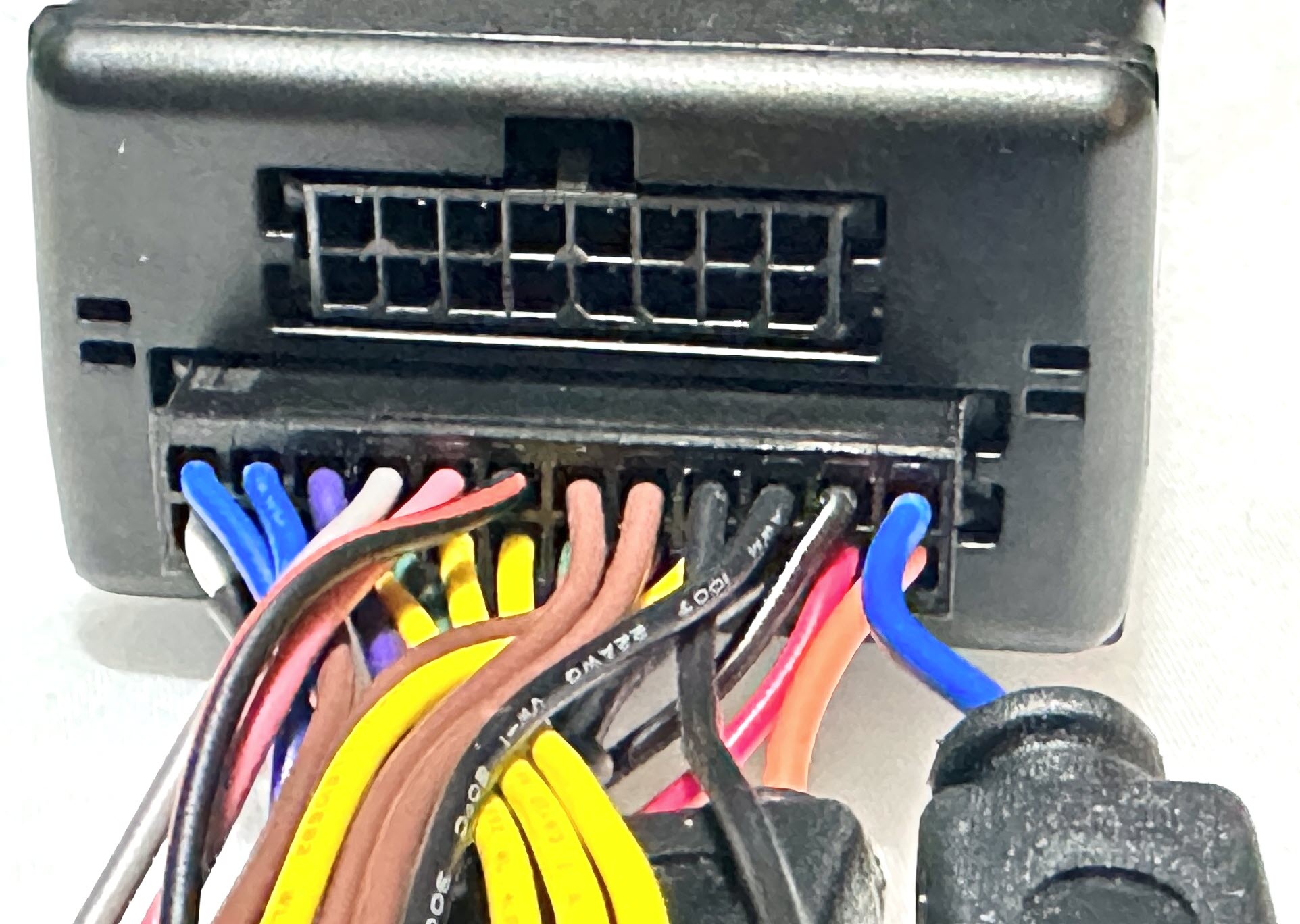

2. On the 24-pin connector (A), identify the pins for the sensor inputs.

   (A1) Input 1: Pin 1 (blue wire), Reveal: positive (+) trigger, Fleet: negative (-) trigger, connects to PTO when applicable
   (A2) Input 2: Pin 2 (blue/orange wire), negative (-) trigger (connects to boom when applicable)
   (A3) Input 3: Pin 3 (purple wire), negative (-) trigger
   (A4) Input 4: Pin 4 (gray wire), negative (-) trigger
   (A5) Input 5: Pin 5 (pink wire), negative (-) trigger
   (A6) Input 6: Pin 6 (black/red wire), negative (-) trigger [goes to the Switch LED Molex connector]

Inputs do not require the 3 wire leads to be installed.

For more details, see CalAmp 36xx I/O Accessory Harness descriptions and wiring diagram.

Step 11: Use the LED lights to identify the device status

1. Start the vehicle and use the LED lights to identify device status.
2. Refer to CalAmp 36xx - Reveal and Fleet LED indicator light patterns for further details.
   The LED light patterns are different for Reveal and Fleet installations.

Step 12: Route the cables and secure the device

1. Put the device in place at the mounting location.
2. Fasten the device securely to a stable mounting bracket or wire bundle using zip ties.
   You can pass the zip ties through the fastening tabs on the sides of the device.
   You must fasten the device securely so it cannot move around. If the device is not secure, the accuracy of harsh driving event reporting will be reduced.

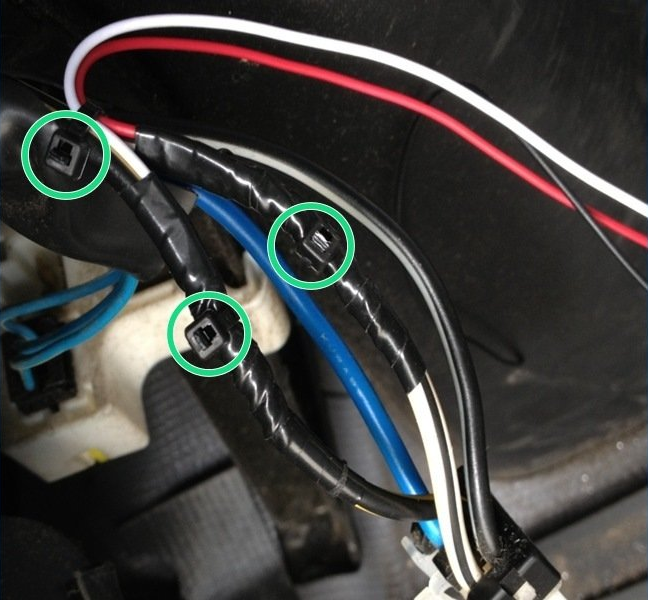

3. Route the cables to the mounting location.
   Coil and secure any loose cabling using zip ties to ensure it will not interfere with the driver or normal operation of the vehicle.

4. Check everything is fastened tightly, and trim zip ties if they have excess length.
   Use extreme caution when trimming the zip ties. Accidentally cutting or nicking nearby vehicle wires will cause performance issues with the vehicle.

Check the installation does not interfere with the driver or normal operation of the vehicle.
If you have removed the dash panel, do not replace it until the network connection is confirmed
(see Step 13).

Step 13: Verify operation

For Fleet

Verizon Connect Installation Partners should use the Fleet Hardware Installer app, Installer Portal or call the Fleet Technician Support line at (877) 943-7306 to link devices to vehicles and verify successful installations.
Customers and their internally managed technicians should use the Installer Portal or the customer's Fleet portal steps to link and verify successful installations.

For Reveal

If you are replacing or swapping a vehicle tracker, complete the swap in Reveal first. This merges the data from your old tracker with the new tracker so you have one continuous history for the vehicle. Learn more about swapping a vehicle in Reveal.

Verizon Connect Installation Partners should use the Reveal Hardware Installer (RHI) app or call the Reveal Technician Support line at (866) 908-1165 to link devices to vehicles and verify successful installations.

Customers and their internally managed technicians should use the Reveal portal to link and verify successful installations. Learn how to Verify an installation in Reveal.

Step 14: Enable and configure installed hardware

Installed accessory hardware must be enabled and have its parameters set via configuration file updates. Installation technicians should do this by calling Support.

For example:

• A Driver ID and buzzer must be enabled and have parameters set for the buzzer's grace period and timeout settings.
• Installations that use a 3-wire (hard wired) power connection must have white wire ignition detection enabled via a configuration file update.

Accessories include:

• Driver ID reader and buzzer settings
• Panic/Privacy button
• *Bluetooth
• *ELD
• *Door sensors / magnetic sensor inputs
• *Temperature probe sensor inputs
• *Garmin
• *Immobilization

*Available on Fleet only
